• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

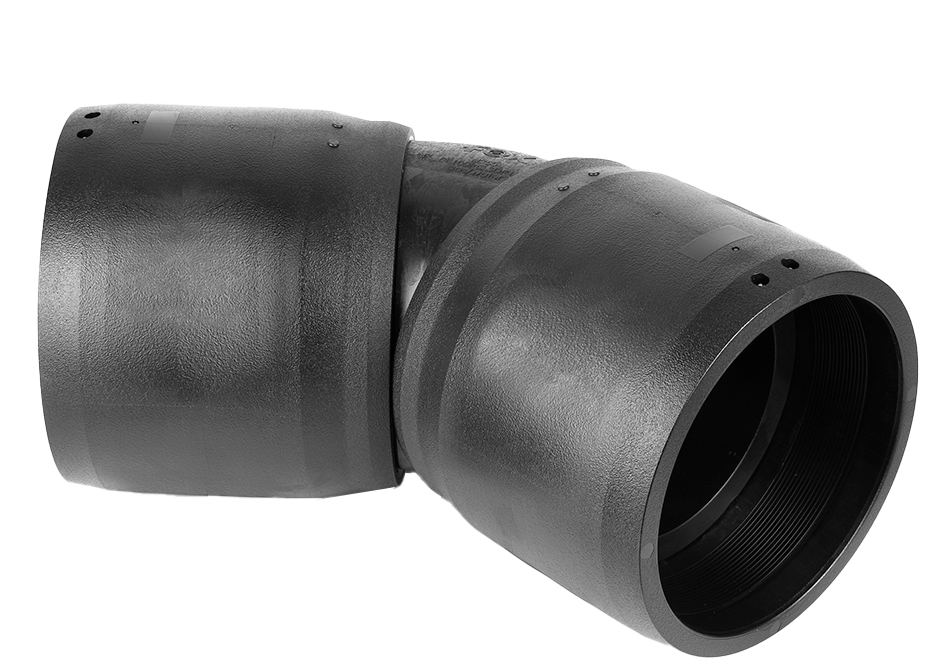

Electrofusion elbows are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	A [mm]	D3 [mm]	Weight [kg]
180	355	213	6.70
200	383	238	8.79
225	430	266	12.45
250	463	295	16.00
280	517	336	21.94
315	571	379	29.95
355	912	426	65.00
400	989	476	76.50
450	1069	537	119.00
500	1200	600	156.00
