• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

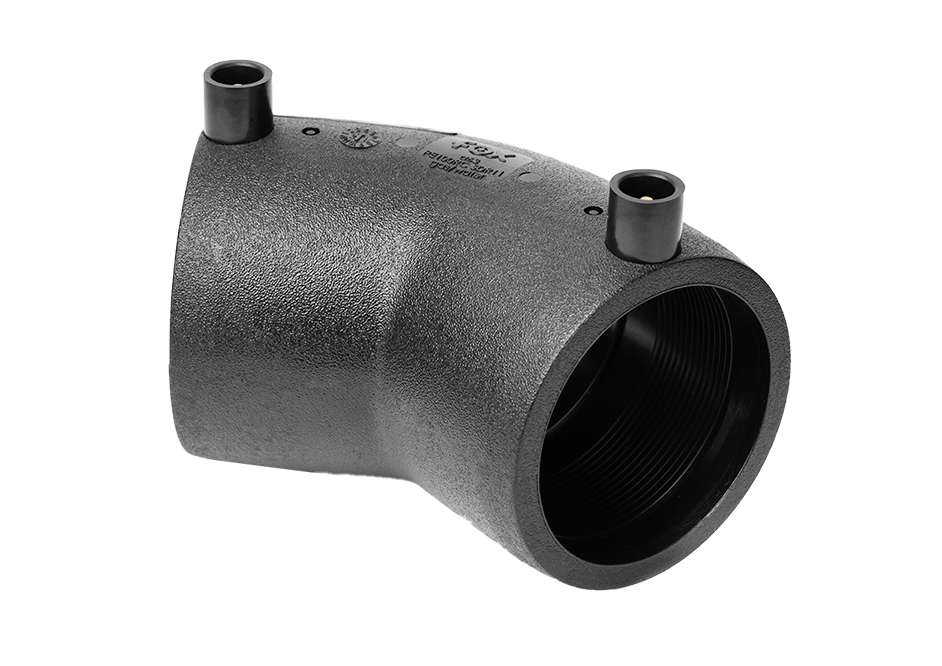

Electrofusion elbows are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	A [mm]	D3 [mm]	Weight [kg]
20	65	35	0.07
25	66	37	0.06
32	74	44	0.08
40	86	56	0.14
50	97	67	0.18
63	114	81	0.23
75	140	93	0.41
90	160	112	0.64
110	185	135	0.94
125	208	151	1.20
140	229	170	1.82
160	253	195	2.35
