• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

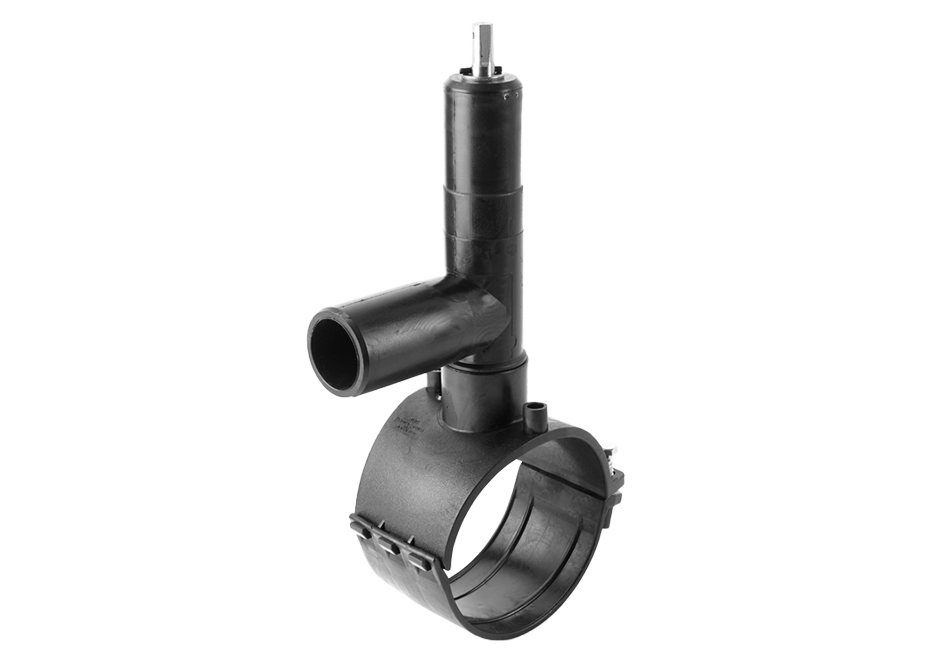

Tapping T-pieces are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	D2 [mm]	A [mm]	B [mm]	C2 [mm]	L1 [mm]	C1 [mm]	Assembly¹	Weight [kg]
63	32	126	320	140	86	87	C	1,52
63	63	126	320	140	99	87	C	1,65
75	32	126	320	140	86	87	C	1,57
75	63	126	320	140	99	87	C	1,70
90	32	128	320	140	86	87	C	1,68
90	63	128	335	140	99	87	C	1,81
110	32	128	340	140	86	87	C	1,82
110	63	128	340	140	99	87	C	1,95
125	32	128	340	140	86	87	C	1,83
125	63	128	340	140	99	87	C	1,87
140	32	128	340	140	86	87	B	1,88
140	63	128	340	140	99	87	B	1,90
160	32	190	365	140	86	85	C	2,20
160	63	190	365	140	99	85	C	2,30
180	32	190	365	140	86	85	C	2,45
180	63	190	365	140	99	85	C	2,51
200	32	170	340	140	86	87	B	2,57
200	63	170	340	140	99	87	B	2,62
225	32	170	340	140	86	90	B	2,79
225	63	170	340	140	99	90	B	2,84
250	32	170	340	140	86	87	B	2,84
250	63	170	340	140	99	87	B	2,89

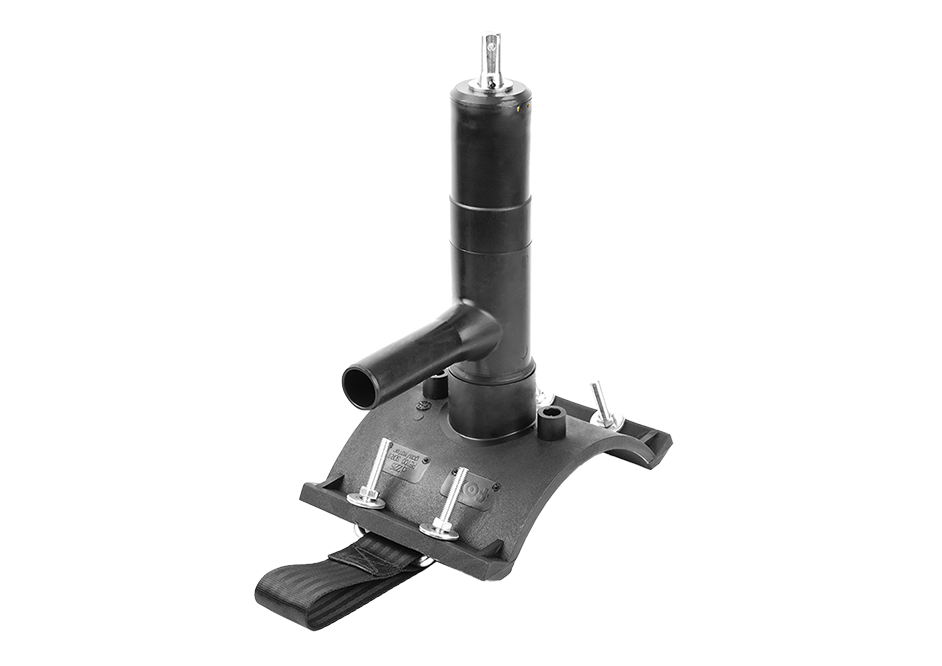

Assembly¹ b - belt, c - PE detail
