• PE100-RC material is resistant to the long-term expansion of cracks, scratching, and point-type loads. Point-type loads are especially common during the assembly of the pipelines using trenchless installation methods (for instance, as a result of friction against the stones that are present in the soil). In the case of a point-type load, tension, and plastic deformations are produced in the material, which may cause cracks in the internal surface.
• The result of applying electrofusion fittings is a solid and safe joint of pipe and any other elements belonging to the pipeline system. The electrofusion joint features excellent pressure resistance and tightness.

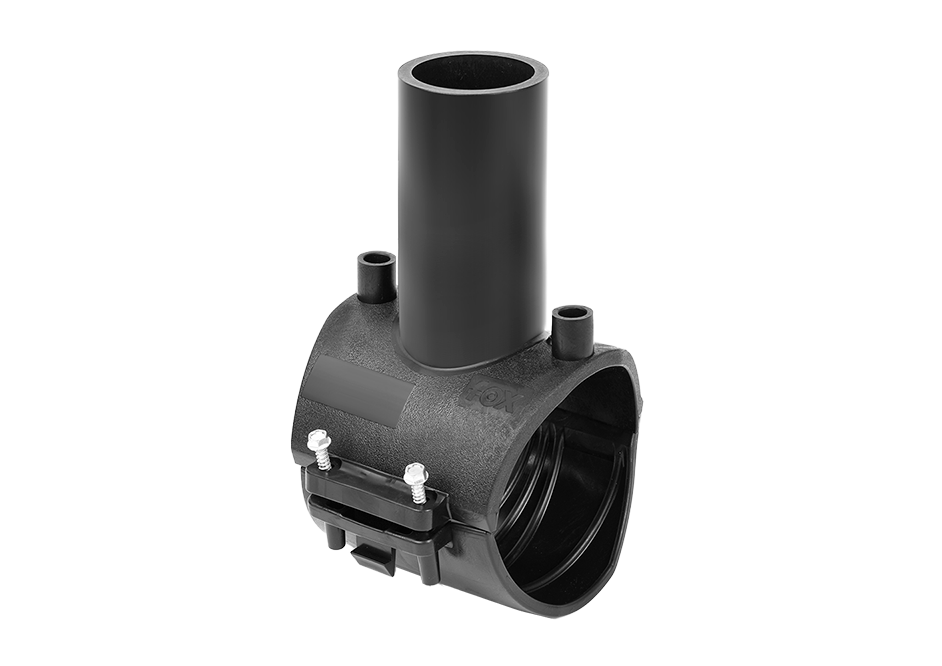

Electrofusion branch saddles are used in installations distributing gas and water.

• Material: Polyethylene PE100-RC
• SDR class: 11
• MRS: 10 [MPa]
• Work pressure water systems: 16 [bar]
• Work pressure gas systems: 10 [bar]

Product dimensions
D1 [mm]	D2 [mm]	A [mm]	B [mm]	L1 [mm]	Assembly [mm]	Weight [mm]
63	20	126	109	67	C	0.22
63	25	127	110	70	C	0.23
63	32	127	137	97	C	0.25
63	40	127	136	96	C	0.25
63	50	127	136	95	C	0.27
63	63	127	136	97	C	0.33
75	20	126	109	70	C	0.22
75	25	127	111	72	C	0.26
75	32	127	139	98	C	0.27
75	40	127	136	98	C	0.28
75	50	127	136	97	C	0.30
75	63	127	136	97	C	0.36
90	25	118	123	43	C	0.38
90	32	118	127	71	C	0.42
90	63	126	143	90	C	0.51
110	25	128	137	43	C	0.54
110	32	128	140	70	C	0.54
110	63	129	155	88	C	0.63
125	25	128	133	43	C	0.51
125	32	128	140	70	C	0.53
125	40	128	152	75	C	0.55
125	63	129	153	89	C	0.62
140	32	127	131	70	B	0.41
140	63	128	148	89	B	0.48
160	25	129	157	43	c	0.76
160	32	190	194	99	c	0.97
160	63	190	192	106	c	1.02
160	75	190	195	107	c	0.99
160	90	190	191	107	c	1.11
160	110	190	195	107	c	1.30
180	25	128	156	43	B	0.89
180	32	190	193	98	C	0.99
180	40	128	170	75	B	0.95
180	63	190	189	105	C	1.05
180	75	190	192	107	C	0.78
180	90	190	192	107	C	1.13
180	110	190	194	108	C	1.32
200	25	168	155	97	B	0,75
200	32	168	156	97	B	0,74
200	40	170	158	98	B	0,78
200	50	170	158	97	B	0,78
200	63	169	155	96	B	0,82
200	75	190	193	97	B	1,04
200	90	190	191	107	B	1,10
200	110	190	195	107	B	1,12
225	25	169	155	97	B	0,73
225	32	170	159	98	B	0,77
225	40	170	159	98	B	0,76
225	50	169	156	96	B	0,78
225	63	169	156	96	B	0,83
225	75	210	164	110	B	10,2
225	90	209	175	110	B	1,15
225	110	210	174	110	B	1,29
250	25	169	156	99	B	0,81
250	32	170	154	99	B	0,79
250	40	169	158	99	B	0,84
250	50	169	159	98	B	0,85
250	63	169	155	96	B	0,88
250	75	209	167	113	B	1,10
250	90	209	165	111	B	1,16
250	110	209	166	111	B	1,28
280	25	169	157	98	B	0,79
280	32	169	157	98	B	0,80
280	40	169	158	99	B	0,85
280	50	169	158	99	B	0,84
280	63	169	157	98	B	0,91
280	75	209	167	114	B	1,10
280	90	209	165	111	B	1,16
280	110	210	167	110	B	1,31
315	25	170	159	99	B	0,84
315	32	168	153	96	B	0,81
315	40	169	155	98	B	0,83
315	50	170	159	99	B	0,88
315	63	170	157	98	B	0,92
315	75	209	162	113	B	1,12
315	90	209	163	110	B	1,14
315	110	209	166	111	B	1,29

Assembly¹ b - belt, c - PE detail
