EVOEL SM-0H
Rigid, halogen-free conduits
Comp. strength: 750 N/5cm, Classification: 33431

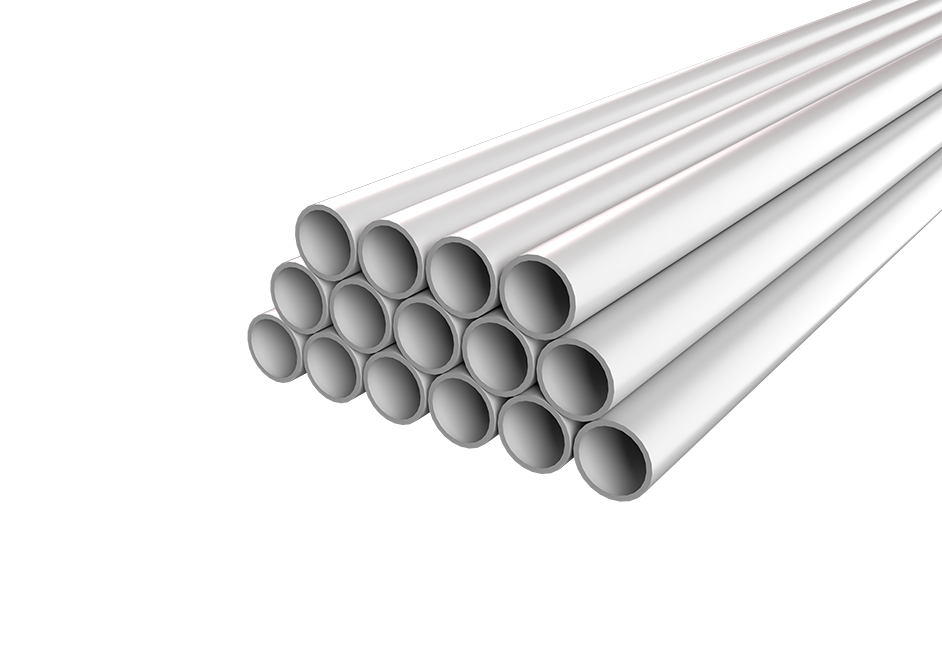

EVOEL SM-OH is a rigid, halogen-free (EN 50642) electrical installation conduit made of a special, grey (RAL 7035) plastic.
The conduit features a medium mechanical resistance and is manufactured in straight 3 [m] bars.
- Available sizes: 16, 20, 25, 32, 40, 50, [mm]
- Available pipe length 3 [m]
-
Recommended application
Internal wiring of private dwellings
The conduits are recommended for safe exposed installations in industrial buildings as well as for use in engineering and anywhere with aggressive substances in the atmosphere. The conduits are specifically recommended for use in low temperatures as well as in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping centres, airports, railway terminals, and office buildings.
- Installations in hollow walls
- Concealed and exposed installations
- Installations in wooden floors, dry concrete and keramzite
- Power distribution rooms and substations
- Private buildings
- Industrial buildings
- Public buildings
- Multi-apartment buildings, more than 5 floors
-
Technical information
- Material- halogen-free plastic
- Compression strength- medium 750 [N/5cm]
- Impact strength- medium 2J [2kg/100mm]
- Temperature resistance from - 25 [°C] to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN16 DN20 DN25 DN32 DN40 DN50 Outer Ø [mm] 16 20 25 32 40 50 Inner Ø [mm] 12.4 16.4 21.4 28.0 35.2 44.0 Length [m] 3 3 3 3 3 3 Classification
Digit in the classification code 1 2 3 4 5 Compression
strengthImpact
strengthOperating temperature Flexibility Minimum Maximum Code 1 125N (very low) 1 0,5J (0,5 kg/100mm) 1 +5°C 1 + 60°C 1 Rigid 2 320N (low) 2 1J (1,0 kg/100mm) 2 -5°C 2 + 90°C 2 Pliable 3 750N (medium) 3 2J (2,0 kg/100mm) 3 -15°C 3 +105°C 3 Pliable/
Self-recovering4 1250N (high) 4 6J (2,0 kg/300mm) 4 -25°C 4 +125°C 4 Flexible 5 4000N (very high) 5 20,4J (6,8 kg/300mm) 5 -45°C 5 +150°C 6 +250°C 7 +400°C -

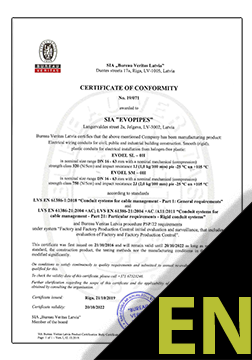

Certificates
The EVOEL conduits are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-21:2004+AC/A11:2011
- EN 60754-1:2015
- EN 60754-2:2015
- EN 50642:2018
