EVOEL SL
Rigid, PVC-U conduits
Comp. strength: 320 N/5cm, Classification: 22211

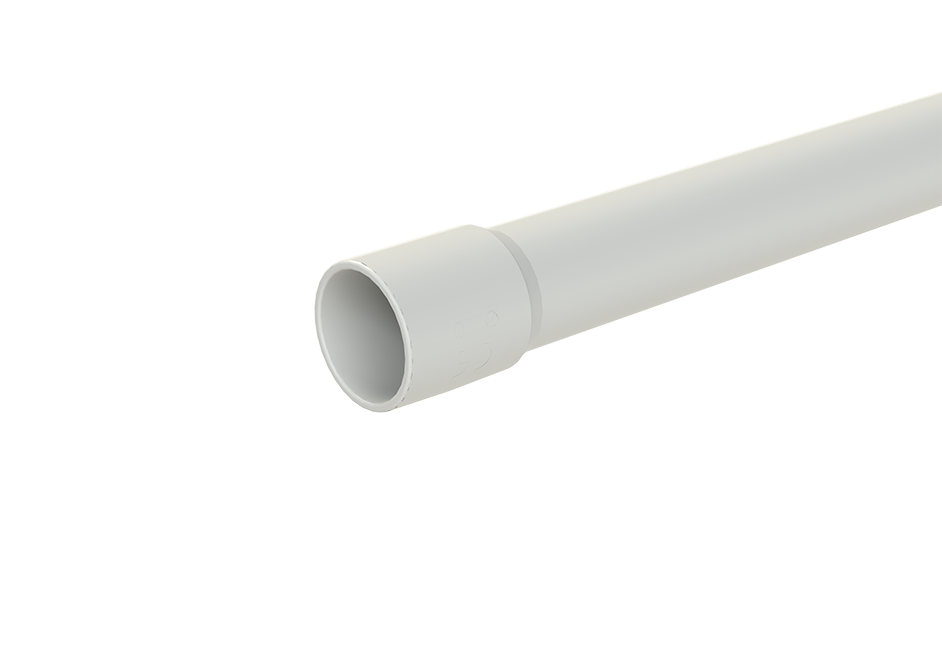

EVOEL SL is rigid electrical installation conduit made of light grey (RAL 7035) PVC-U material.
The conduit is manufactured in straight 3 [m] bars, with a moulded-on coupling for quick connection featuring a low mechanical resistance.
- Available sizes: 16, 20, 25, 32, 40 [mm]
- Available pipe length 3 [m]
-
Recommended application
Internal wiring of private dwellings
EVOEL SL conduits are recommended for simple exposed installation.
- Installations in hollow walls
- Concealed installations
- Power distribution rooms and substations
- Private buildings
-
Technical information
- Material: PVC-U (unplasticised polyvinyl chloride)
- Low compression strength 320 [N/5cm]
- Low impact strength 1J [1kg/100mm]
- Temperature resistance from - 5°C to +60°C
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN16 DN20 DN25 DN32 DN40 Outer Ø [mm] 16 20 25 32 40 Inner Ø [mm] 14.3 18.3 22.6 29.4 36.8 Length [m] 3 3 3 3 3 Classification
Digit in the classification code 1 2 3 4 5 Compression
strengthImpact
strengthOperating temperature Flexibility Min. Max. 1 125N (very low) 0,5J (0,5 kg/100mm) +5°C + 60°C Rigid 2 320N (low) 1J (1,0 kg/100mm) -5°C + 90°C Pliable 3 750N (medium) 2J (2,0 kg/100mm) -15°C +105°C Pliable/
Self-recovering4 1250N (high) 6J (2,0 kg/300mm) -25°C +125°C Flexible 5 4000N (very high) 20,4J (6,8 kg/300mm) -45°C +150°C 6 +250°C 7 +400°C -

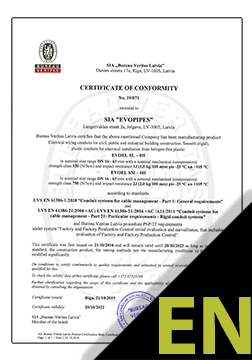

Certificates
The EVOEL conduits are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-21:2004+AC/A11:2011
