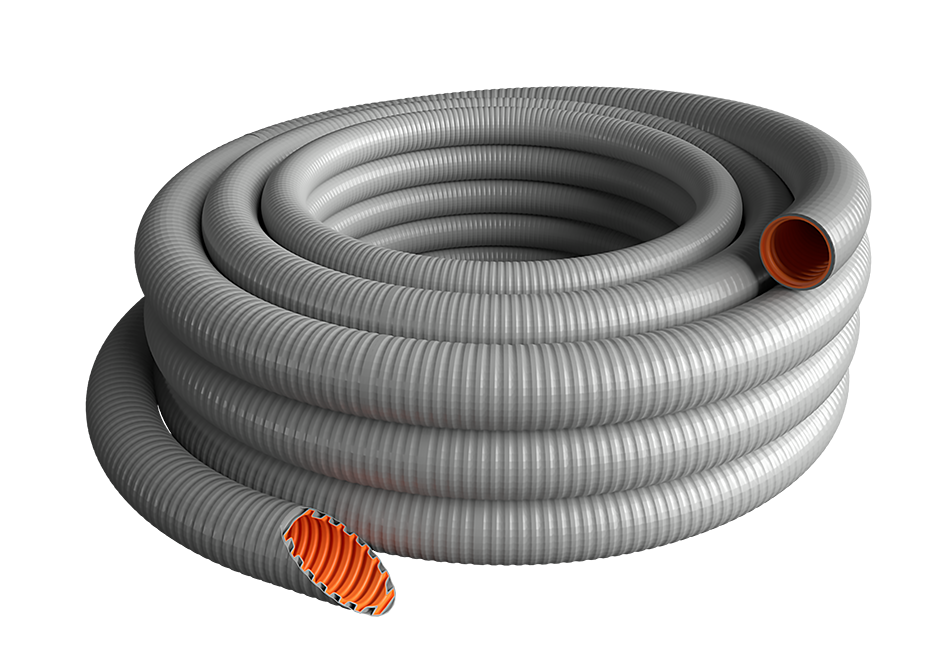

EVOEL FMs-0H-SMART
Sheathed, flexible, halogen-free conduits
Comp. strength: 750 N/5cm, Classification: 33433
EVOEL FM-0H-SMART is a flexible conduit made of a special, halogen-free material (EN 50642), ideally suitable for installations in concrete.
The special structure of the inner surface of the conduit with outstanding gliding properties allows to considerably extend the cable-pulling distances and reduces the length of installation work.
- Available sizes: 16, 20, 25, 32, 40, 50 [mm]
- Available in rolls of 100, 50, or 25 [m], depending on the diameter of the conduit
-
Advantages
- The internal layer offers outstanding gliding properties
- Extended cable pulling distances
- Reduced installation time
- Conduit is from halogen-free material (meets the requirements of EN 50642)
-
Recommended application
Internal wiring of private dwellings
The conduits are specifically recommended for installations in concrete, can be used for installations in hollow walls, partitions, or suspended ceilings.
Conduits of this type are the best solution for exposed and concealed installations, underground installations, the connection of equipment or machine tools in schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping centres, airports, railway terminals, and office buildings.
- Installations in concrete of all types
- Installations in hollow walls
- Concealed and exposed installations
- Installations in wooden floors and keramzite
- Power distribution rooms and substations
- Private buildings
- Industrial buildings
- Public buildings
- Multi-apartment buildings, more than 5 floors
-
Technical information
The colour of the cable sheath is light grey (RAL 7035) with an orange inner gliding layer.
- Material - a special sheathed plastic (halogen-free)
- Compression strength- medium 750 [N/5cm]
- Impact strength- medium
- Temperature resistance from -25 [°C] to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN16 DN20 DN25 DN32 DN40 DN50 Outer Ø [mm] 16 20 25 32 40 50 Inner Ø [mm] 11.1 14.5 18.4 23.9 30.7 39.4 Bend radius ≥ [mm] 48 60 75 96 160 200
R- Bend radius
D- Bend diameterClassification
Digit in the classification code 1 2 3 4 5 Compression
strengthImpact
strengthOperating temperature Flexibility Minimum Maximum Code 1 125N (very low) 1 0,5J (0,5 kg/100mm) 1 +5°C 1 + 60°C 1 Rigid 2 320N (low) 2 1J (1,0 kg/100mm) 2 -5°C 2 + 90°C 2 Pliable 3 750N (medium) 3 2J (2,0 kg/100mm) 3 -15°C 3 +105°C 3 Pliable/
Self-recovering4 1250N (high) 4 6J (2,0 kg/300mm) 4 -25°C 4 +125°C 4 Flexible 5 4000N (very high) 5 20,4J (6,8 kg/300mm) 5 -45°C 5 +150°C 6 +250°C 7 +400°C -
Certificates
The SMART conduits are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-22:2004+AC/A11:2011
- EN 60754-1:2015
- EN 60754-2:2015
- EN 50642:2018
