EVOEL FM-0H-SMART
Flexible, halogen-free conduits
Comp. strength: 750 N/5cm, Classification: 33433
EVOEL FM-0H-SMART is a flexible, reinforced, halogen-free (EN 50642) electrical installation conduit made of a special grey (RAL 7037) plastic material, with an orange inner gliding layer.
The conduit features a medium mechanical resistance, high thermal resistance, and very high flexibility at constant cross-section parameters.
- Available sizes: 16, 20, 25, 32, 40, 50 [mm]
- Available in rolls of 100, 50 or 25 [m], depending on the diameter of the conduit
-
Advantages
- The internal layer offers outstanding gliding properties
- Extended cable pulling distances
- Reduced installation time
- Conduit is from halogen-free material (meets the requirements of EN 50642)
-
Recommended application
Internal wiring of private dwellings
Due to the use of the halogen-free, thermally resistant material, the conduits are suitable for simple concealed installations as well as for installations in hollow walls, partitions, and suspended ceilings in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping centres, airports, railway terminals, and office buildings.
- Installations in hollow walls
- Concealed and exposed installations
- Installations in wooden floors, dry concrete and keramzite
- Power distribution rooms and substations
- Private buildings
- Industrial buildings
- Public buildings
- Multi-apartment buildings, more than 5 floors
-

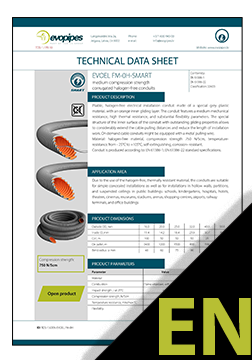

Technical information
- Material - a special plastic (halogen-free)
- Compression strength- medium 750 [N/5cm]
- Impact strength- medium
- Temperature resistance from -25 [°C] to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant.
Pipe dimensions Dimensions DN16 DN20 DN25 DN32 DN40 DN50 Outer Ø [mm] 16 20 25 32 40 50 Inner Ø [mm] 11.1 14.5 18.4 23.9 30.7 39.4 Bend radius ≥ [mm] 48 60 75 96 160 200
R- Bend radius
D- Bend diameterClassification
Digit in the classification code 1 2 3 4 5 Compression
strengthImpact
strengthOperating temperature Flexibility Minimum Maximum Code 1 125N (very low) 1 0,5J (0,5 kg/100mm) 1 +5°C 1 + 60°C 1 Rigid 2 320N (low) 2 1J (1,0 kg/100mm) 2 -5°C 2 + 90°C 2 Pliable 3 750N (medium) 3 2J (2,0 kg/100mm) 3 -15°C 3 +105°C 3 Pliable/
Self-recovering4 1250N (high) 4 6J (2,0 kg/300mm) 4 -25°C 4 +125°C 4 Flexible 5 4000N (very high) 5 20,4J (6,8 kg/300mm) 5 -45°C 5 +150°C 6 +250°C 7 +400°C -

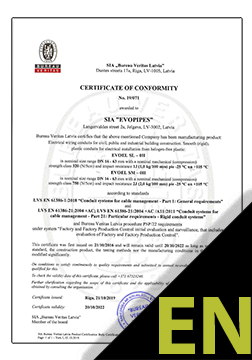

Certificates
The SMART conduits are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-22:2004+AC/A11:2011
- EN 60754-1:2015
- EN 60754-2:2015
- EN 50642:2018
