EVOEL FHs-UV-0H-SMART
Flexible, halogen-free conduits with UV-stabilisation
Comp. strength: 1250 N/5cm, Classification: 44433

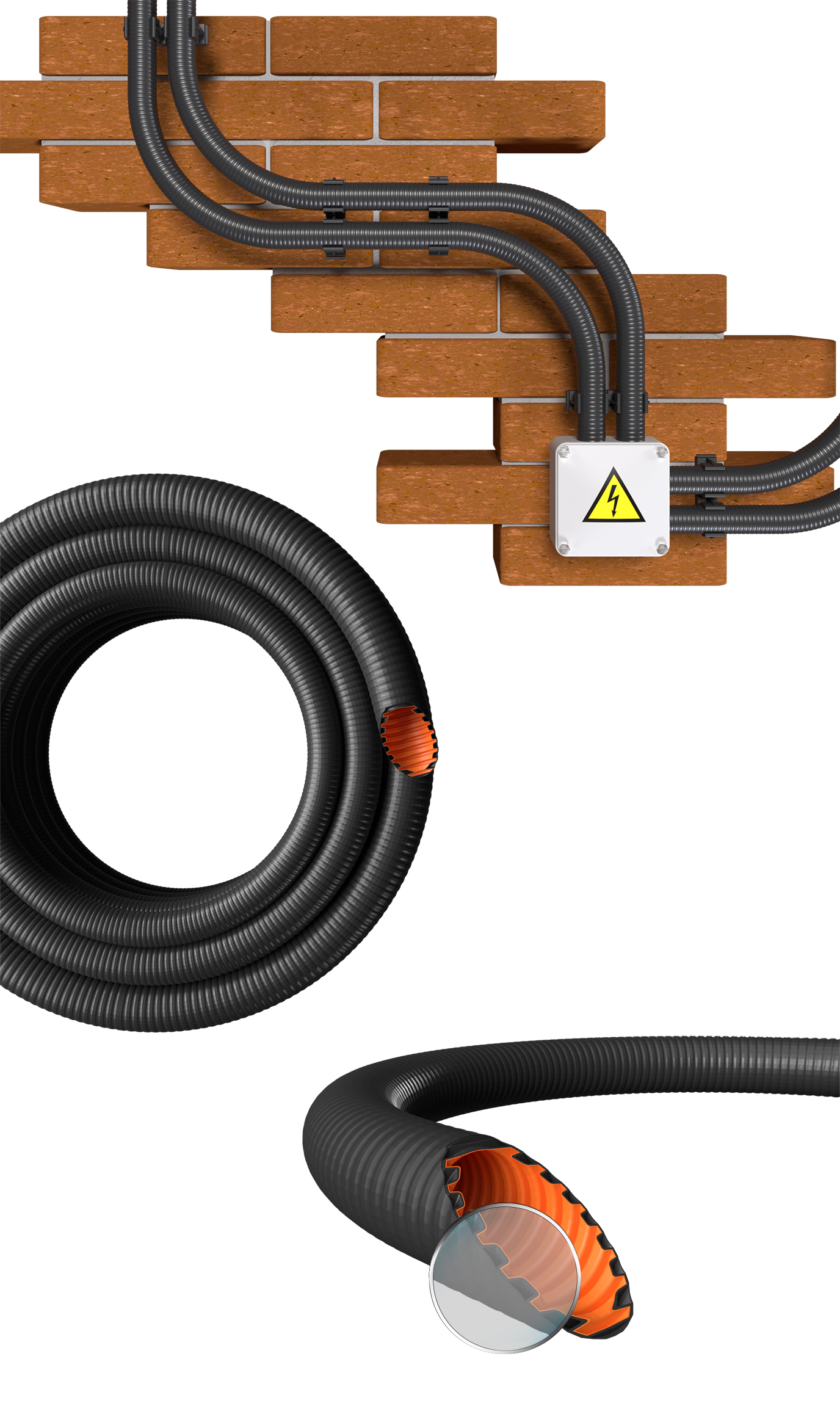

EVOEL FHs-UV-0H-SMART is a flexible electrical installation conduit made of a special, halogen-free material (EN 50642) and ideally suitable for outdoor installations exposed to direct sunlight. The conduit features the highest degree of impact strength.
The special structure of the inner surface of the conduit with outstanding gliding properties allows to considerably extend the cable-pulling distances and reduce the length of installation work.
- Available sizes: 16, 20, 25, 32, 40, 50 [mm]
- Available in rolls of 50 and 25 [m], depending on the diameter of the conduit
-
Advantages
-
Recommended application
Internal wiring of private dwellings
Solutions for solar parks on the roof
The conduits are specifically recommended for outdoor installations, can be used for installations in hollow walls, partitions, or suspended ceilings in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping centres, airports, railway stations, and office buildings. The conduit withstands long-term exposure to sunlight.
UV resistance is guaranteed for 10 years. Especially suitable for the protection of facade lighting cables.
- Outdoor installations exposed to direct UV radiation
- Installations in hollow walls
- Concealed and exposed installations
- Installations in wooden floors, dry concrete and keramzite
- Power distribution rooms and substations
- Private buildings
- Industrial buildings
- Public buildings
- Multi-apartment buildings, more than 5 floors
-
Technical information
The colour of the sheath of the conduits is black (RAL 9004), with an orange inner gliding layer.
- Material - a special UV-resistant plastic (halogen-free)
- Compression strength- high 1250 [N/5cm]
- Impact strength- high
- Temperature resistance from -25 [°C] to +105 [°C]
- Non-flame propagator, self-extinguishing
- Corrosion-resistant
Pipe dimensions Dimensions DN16 DN20 DN25 DN32 DN40 DN50 Outer Ø [mm] 16 20 25 32 40 50 Inner Ø [mm] 10.8 13.6 17.8 23.1 30 38.4 Bend radius ≥ [mm] 48 60 75 96 160 200
R- Bend radius
D- Bend diameterClassification
Digit in the classification code 1 2 3 4 5 Compression
strengthImpact
strengthOperating temperature Flexibility Minimum Maximum Code 1 125N (very low) 1 0,5J (0,5 kg/100mm) 1 +5°C 1 + 60°C 1 Rigid 2 320N (low) 2 1J (1,0 kg/100mm) 2 -5°C 2 + 90°C 2 Pliable 3 750N (medium) 3 2J (2,0 kg/100mm) 3 -15°C 3 +105°C 3 Pliable/
Self-recovering4 1250N (high) 4 6J (2,0 kg/300mm) 4 -25°C 4 +125°C 4 Flexible 5 4000N (very high) 5 20,4J (6,8 kg/300mm) 5 -45°C 5 +150°C 6 +250°C 7 +400°C -
Certificates
The SMART conduits are manufactured in compliance with standards:
- EN 61386-1:2018
- EN 61386-22:2004+AC/A11:2011
- EN 60754-1:2015
- EN 60754-2:2015
- EN 50642:2018
