EVOCAB FLEX FR UV 0H

Flexible, halogen-free conduits with UV-stabilisation

Comp. strength: 750 N/5cm, DN/OD 50, 63, 75, 110, 160
EVOCAB FLEX FR UV 0H

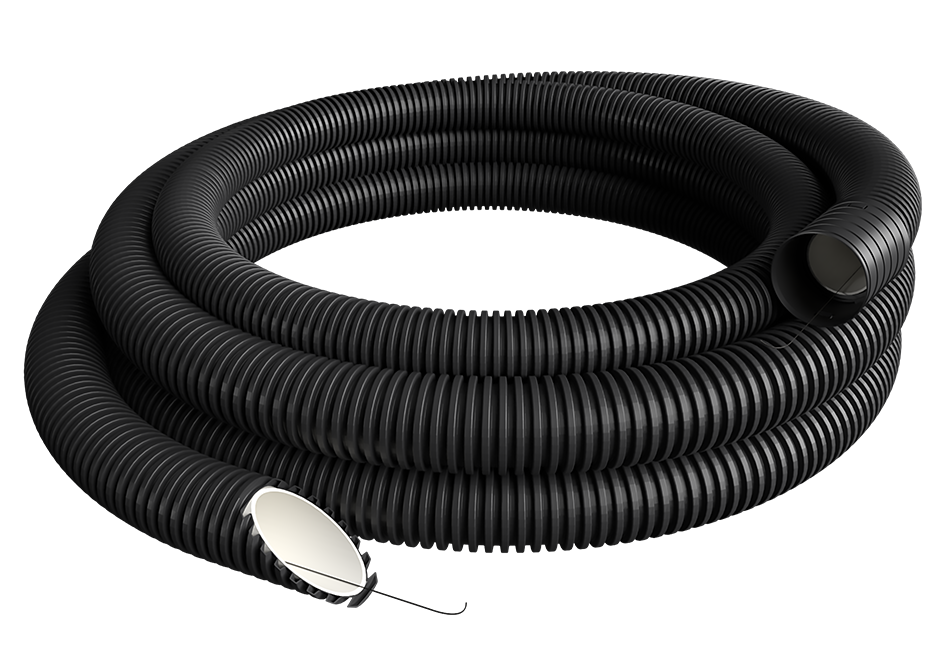

Corrugated double-wall pipes EVOCAB FLEX FR UV 0H for power cables and wire protection and insulation in direct UV exposure and inside the buildings.

Each coil is fixed with a polypropylene band. Coils are positioned on pallets and stretch-packed for comfortable handling.

  • Available sizes: 50, 63, 75, 110, 160 [mm]
  • Available in rolls of 50 or 25 [m], depending on the diameter of the conduit
  • Advantages
    • Long-term durability and abrasion resistance
    • Pipes provide long-lasting, corrosion-free service
    • No need for servicing (repainting, removal of rust)
    • Quick and cheap installation
    • Self-extinguishing, designed for installation in public buildings
  • Recommended application

    Solar parks with centralized PV inverter

    Solar parks with decentralized PV inverter

    Building electrical system connection with entry in the basement

    EVOCAB FLEX FR UV 0H are especially recommended for creating outdoor installations. They can be used in the construction of substation entrances, transitions of cable lines from cable pipes in buildings, tunnels and basements, as well as in the construction of transitions from underground cable lines to overhead lines. The pipes are suitable for mechanical protection and insulation of the interior of buildings in inter-floor mains and electrical installations of public buildings. The tube can be exposed to long-term exposure to sunlight. UV resistance is guaranteed for 10 years.

    • Safe connections and installation at electric power substations;
    • Cable connections between floors;
    • Connections of buildings to electrical power networks;
    • The transition of overhead lines to underground cable networks;
    • Mechanical protection of power cables inside buildings.
  • Technical information

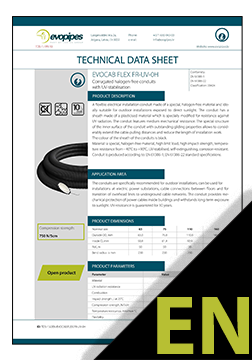

    EVOCAB FLEX FR UV 0H TDS ENG

    Product technical datasheet

    Download
    EVOCAB FLEX FR UV 0H TDS ENG

    EVOCAB FLEX FR UV is produced in coil lengths of 25 and 50 meters with pre-installed pulling wire.

    The product is additionally labelled with a yellow stripe and product identification information: “FR UV 0H, 750N EN 61386-22”.

    • Long-term UV resistance (more than 10 years)
    • Self-extinguishing, designed for installations in public buildings
    • Increased fire resistance
    • Low smoke emission
    • Compression strength class: 750
    • Impact resistance- medium >2J (2kg/100mm)
    • Pipe type: pliable pipe
    • Made from flame retarding compound
    • Temperature resistance from -40 °C to +90 °C
    • Using sealing rings¹ water resistance (0.5 bar) of joints can be achieved

    ¹ The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.



    Pipe dimensions
    Dimensions DN50 DN63 DN75 DN90 DN110 DN160
    Outer Ø [mm] 50 63 75 90 110.1 160
    Inner Ø [mm] 39.8 50.9 61.9 75.2 92.9 136.7
    Length [m] 50 50 50 50 50 25
    Bend radius min. [m] 0.23 0.23 0.23 0.23 0.23 0.28

    R- Bend radius
    D- Bend diameter

  • Certification

    EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

    Certificate of conformity (Bureau Veritas)

    Download
    EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG
    The EVOCAB protection pipes are manufactured in compliance with standards:
    • EN 61386-1:2018
    • EN 61386-22:2004+AC/A11:2011
    • EN 60754-1:2015
    • EN 60754-2:2015

EVOCAB FLEX FR UV 0H

Flexible, halogen-free conduits with UV-stabilisation

Comp. strength: 750 N/5cm, DN/OD 50, 63, 75, 110, 160
Downloads

Cable protection systems installation guidelines

Cable protection systems

Download
Cable protection systems installation guidelines

EVOCAB FLEX minimum permissible depth of embedment

Conform to EN 61386-24 standard: the maximum permissible internal diameter deflection <5%

Download
EVOCAB FLEX minimum permissible depth of embedment

EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

Certificate of conformity (Bureau Veritas)

Download
EVOEL SMART FL, FM, FMs, FHs-UV, FLEX FR-UV Certificate ENG

EVOCAB FLEX FR UV 0H TDS ENG

Product technical datasheet

Download
EVOCAB FLEX FR UV 0H TDS ENG

Order information

Code DN/OD Length [m] Pack [m] Truck load [m]
EVOCAB FR-UV 0H
2011505050003C01102 50 50 800 19200
2011506350003C01102 63 50 500 12000
2011507550003C01102 75 50 350 7700
2011511050003C01102 110 50 200 4400
2011516025003C01102 160 25 125 2025

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
