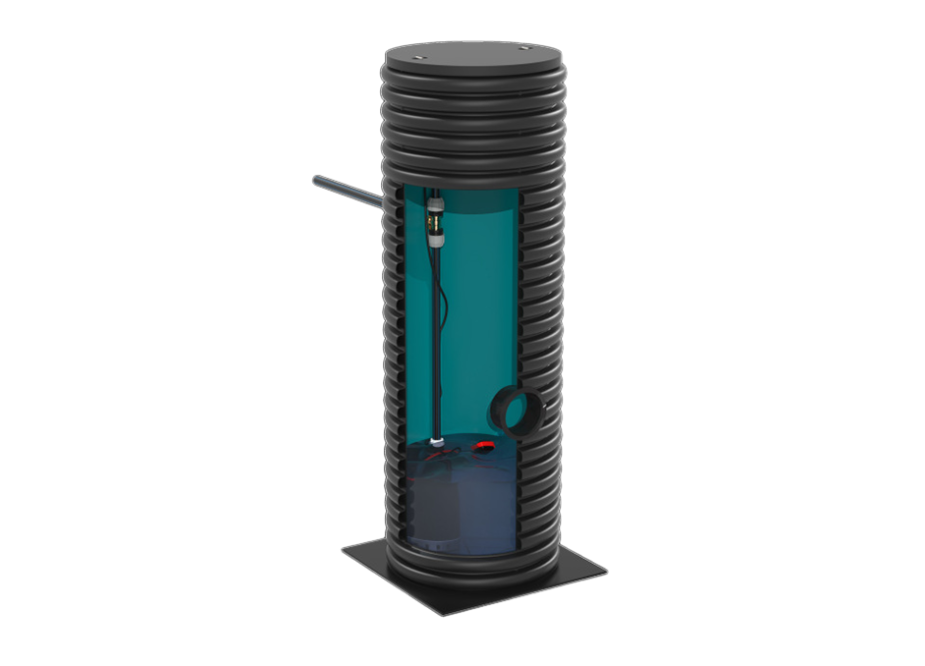

ID 600 chamber with pump
Drainage chamber with pump for private houses
The drainage chamber DN/ID 600 [mm] with pump for installations for private houses.
- Connections can be made at any height and angle on site
- Connection: DN/OD 110, 160, 200 [mm]
- Water pump: Grundfos Unilift CC 7/Xylem DOMO7/Xylem DOMO GRI11
-
Advantages
Long service life (>50 years*)
Flexible for movements in soil (no cracking of the chamber)
Water-tightness
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick control and maintenance
* Excluding water pump
-
Technical information
Installation depth:
-
Minimum installation depth: 2.0 [m]
-
Maximum installation depth: 3.0 [m]
Chamber cover:
-
Round plastic cover, stationary type, polypropylene (PP), DN 600 [mm], class A15.
Chamber shaft and base:
-
Corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
-
Round plastic cover, stationary type, polypropylene (PP), DN 600 [mm], correspond to the requirements of EN 13476-3 standard
Water pump:
Pump options Grundfos Unilift CC 7 Xylem DOMO7 Xylem DOMO GRI11 Electrical parameters 50Hz, 220V, 380W 50 Hz, 220–240 V, 550 W (0,55 kW) 50 Hz, 220–240 V, 1100 W (1.1 kW) Water flow rate (max) 10 m³/h ~16 m³/h 6,4 m³/h Power cable length 10m 10m 10m -
-
Drawings
