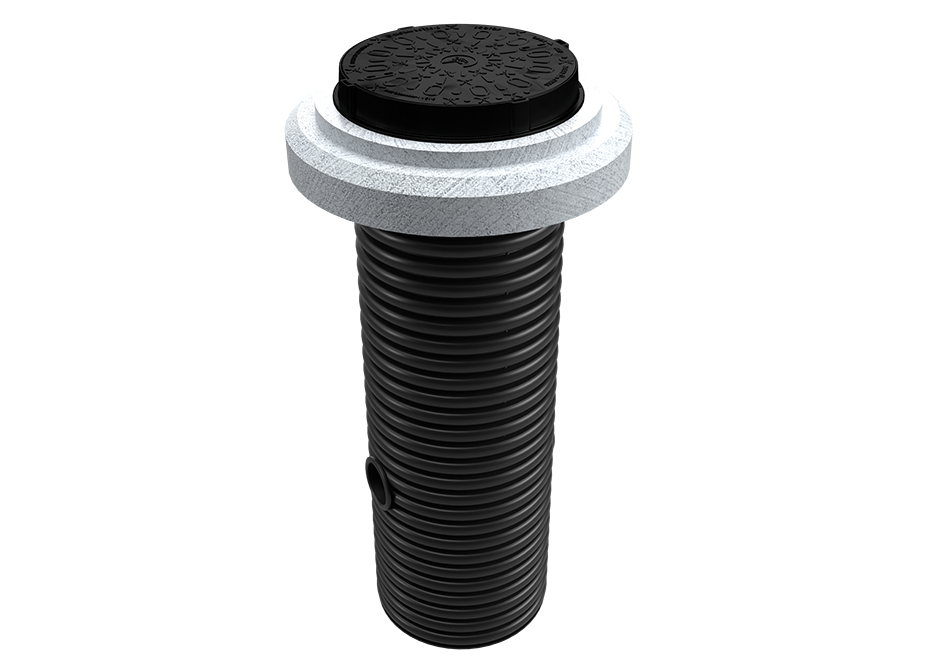

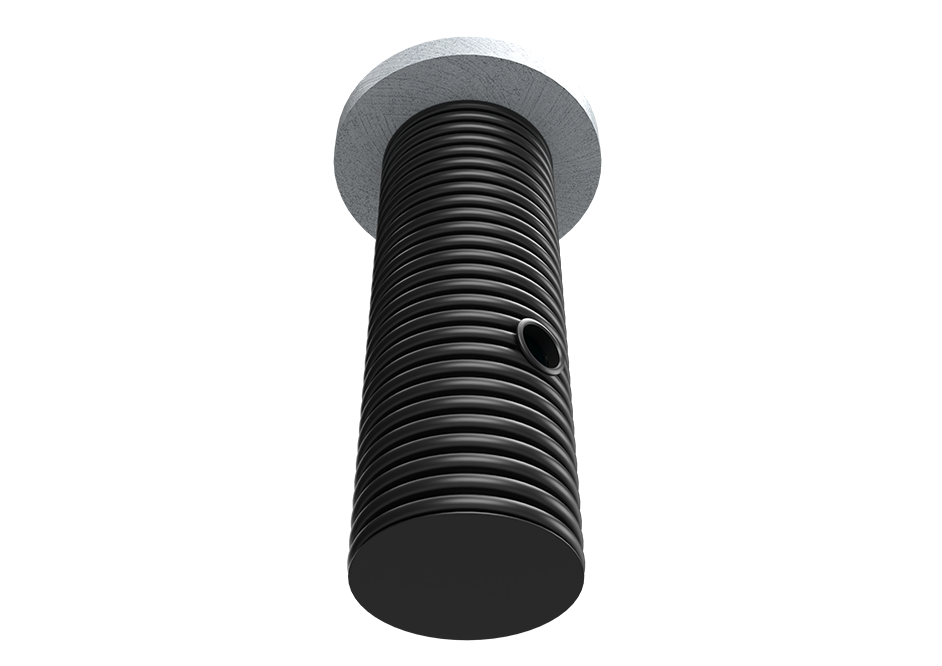

CSL 600D
Drainage inspection chamber with sediment trap and cast iron cover
Connections 110, 160, 200, 250, 315

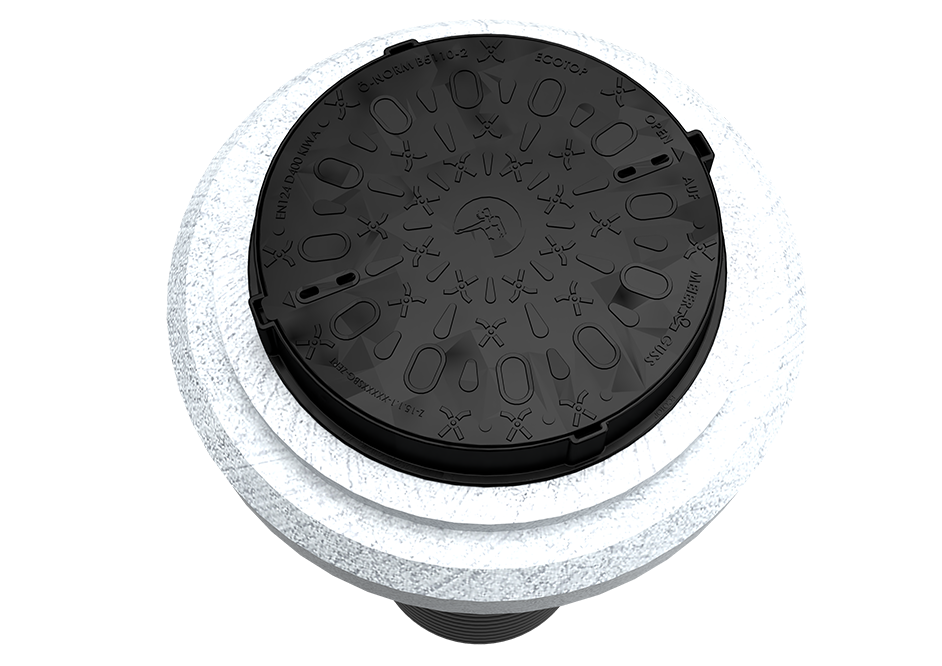

The drainage chamber DN/ID 600 [mm] with sediment trap and cast iron D400 class cover.
- Connections can be made at angles: 0°.. 270°
- Connection DN/OD 110 .. 315 [mm]
- Access hole: DN 600 [mm]
- Sediment trap volume*: 145 [dm³]
*by default, on request it is possible order different sediment trap volumes (or chambers without one at all)
-
Advantages
Long service life (>50 years)
Flexible for movements in soil (no cracking of the chamber)
Water-tightness
Resistant to aggressive environment, no corrosion
The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks
-
Recommended application
In agriculture, forestry, in parks, squares and peat fields
Temporary and permanent drainage at construction sites
Railroad infrastructure territory
Stadiums and sport complexes
Road construction (with and without transport load)
Landfills (liquid and biogas collection)
-

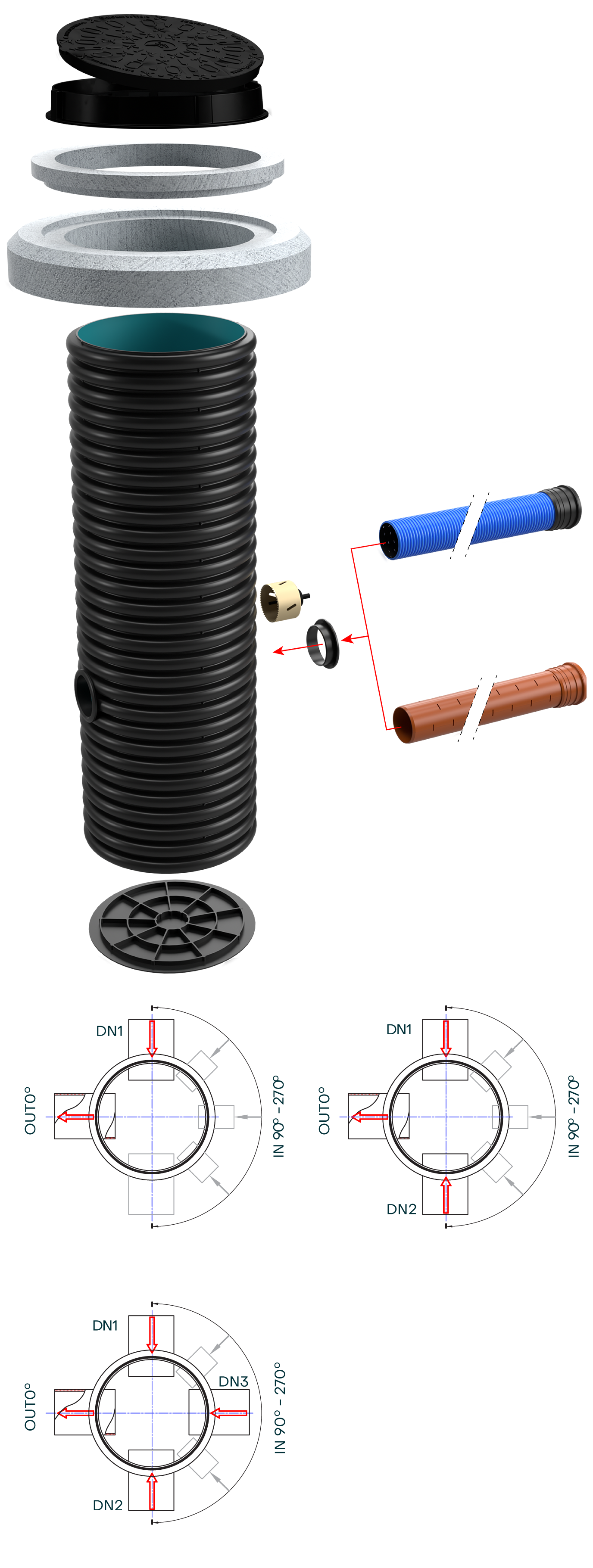

Chamber components
Type: with one inlet DN1
OUT 0° / IN 90° (DN 110-315)
Additional IN 90° - 270°
DN 110/160/200/250/315
Type: with two inlets DN1, DN2
OUT 0° / IN 90° and IN 270° (DN 110-315)
Additional IN 90° - 270°
DN 110/160/200
Type: with three inlets DN1, DN2, DN3
OUT 0° / IN 90°, IN 180°, IN 270° (DN 110-315)
Additional IN 90° - 270°
DN 110/160/200
-
Technical information
Installation depth:
-
Minimum instalation depth: 1.0 [m]
-
Maximum installation depth is up to 6.0 [m], if the ground water level is 2.0 [m] from the surface. If the ground water level is 0.0 [m] from the surface, the maximum installation depth is 5.0 [m], according to the requirements of EN 13598-2 standard
Chamber cover:
-
Stationary type cast iron frame and cover, DN 600/746 [mm], installation class D400 (40t) corresponds to the requirements of EN 124-2 standard
-
Reinforced concrete height adjustmet ring, DN 700/920 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
-
Reinforced concrete support ring, DN 700/1060 [mm], corresponds to the requirements of EN 206, EN 1917 and EN 1917/AC standard
Chamber shaft and base:
-
Height-adjustment corrugated PP double-wall shaft DN/ID 600 [mm] correspond to the requirements of EN 13476-3 and EN 14802 standards
-
Polypropylene (PP) base of chamber, type CR-CT, DN 600 [mm] correspond to the requirements of EN 13476-3 standard
Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic chamber are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment)
How to create additional connections:
Legend:1 - hole saw
2 - chamber shaft connection seal
3 - socket adapter/chamber connection
4 - sealing ring -
-

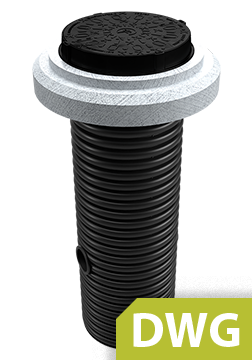

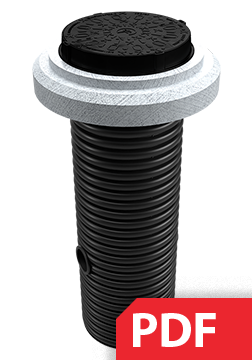

Drawings
