Surface box for tapping valves MEICAP-SN
Self-leveling, DN 100 mm
EN 1080, DIN 4057-A-V DIN 3580-1

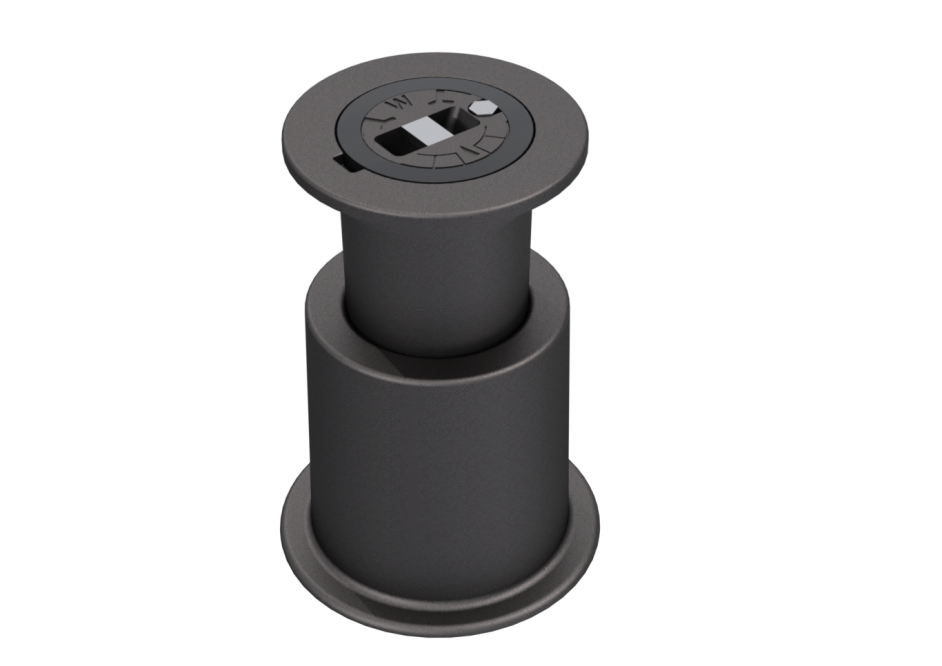

Self-leveling ductile iron surface box for tapping valves. The box is equipped with a replaceable MEIPREN cushioning insert.
-

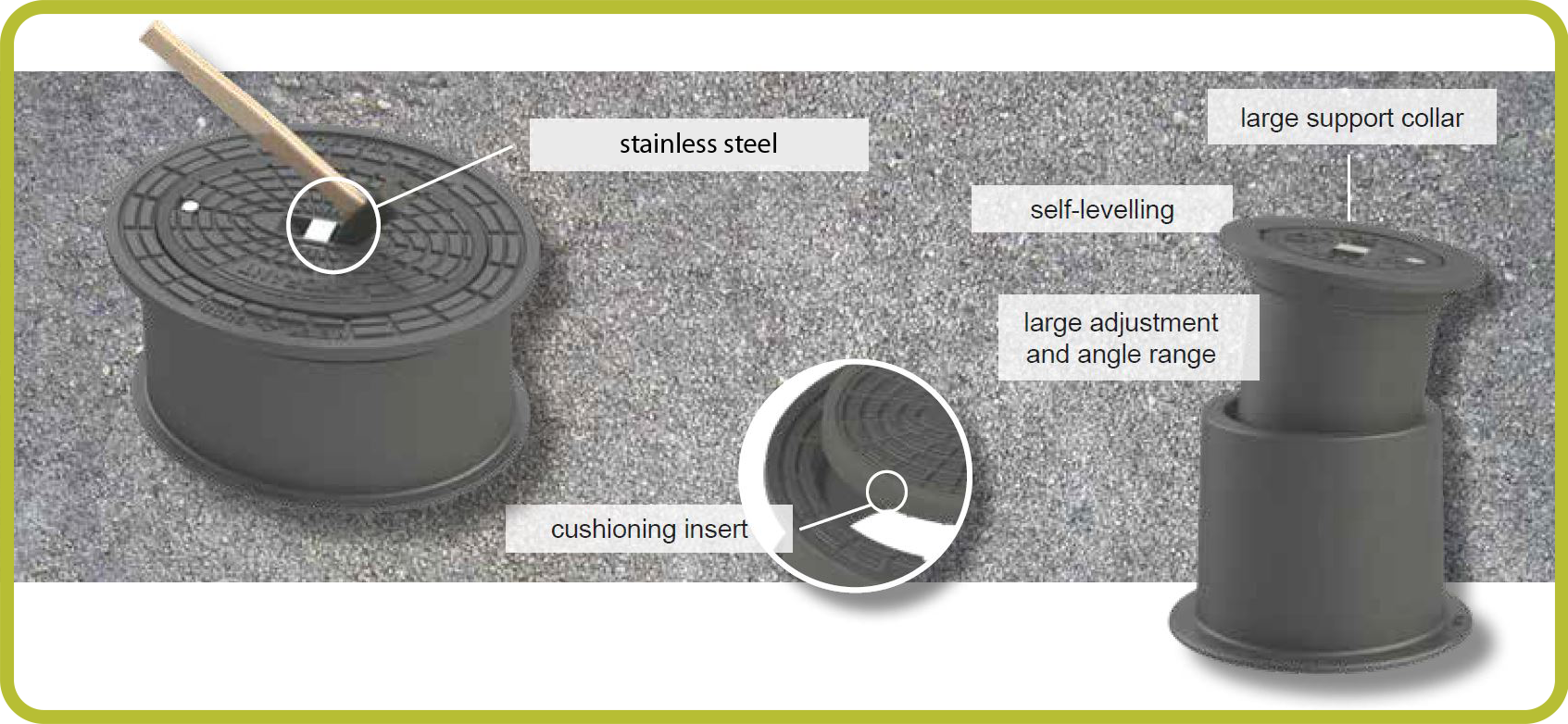

Advantages
- dual-body cast iron surface box
- conformity - EN 1080, DIN 3580-1 (tests), DIN 4057-A-V (dimensions)
- extremely large support collar, excellent load transfer
- self-levelling and suitable for roll-in
- cover with integrated (exchangable) cushioning insert MEIPREN®, tested for installation in hot asphalt surface (1 hour / 180 °C)
- adjustable incline (≥ 14°) and height (h = 231-370 mm)
- MEIPREN® cushioning insert prevents freezing and ensures convenient opening of the cover during the winter
- installation without carrier plate possible
- installation in paved area possible
- opening bar, bolts and nuts made of stainless steel, rust-proof
- long service life due to use of high quality cast iron
- if necessary cover can be replaced with compatible DIN products
-
Technical information
Self-leveling surface box for tapping valves, DN 100 mm:
- Conformity: EN 1080, DIN 4057-A-V (dimensions), DIN 3580-1 (tests)
- Load class: D400
- Certification: KIWA
- Material: ductile iron
- Weight: 14,6 kg
- Cushioning insert - MEIPREN®
- Adjustment height 231-375 mm
-
