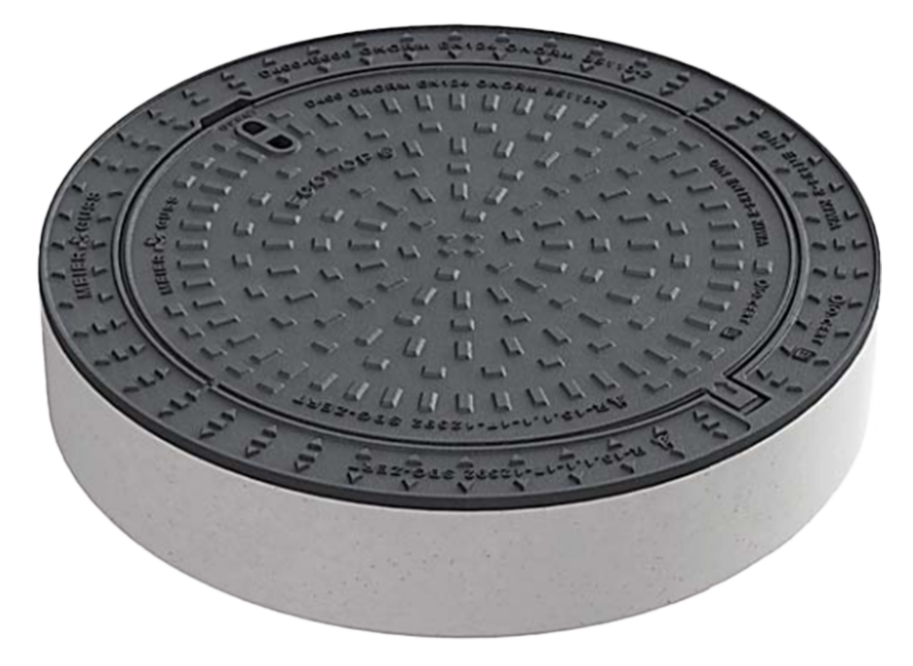

ECOTOP DN600/785, D400
Stationary type round frame and cover
EN 124-2
Stationary type grate, frame encapsulated in concrete, with no ventilation, crew aperture 602 [mm], EN124-2.
-
Technical information
- Load class: D400
- Certification: KIWA
- Height: 160 mm
- Weight: 125 kg
- Spring lock:
- Cast spring secures and centres the cover in the frame
- Detachable hinge:
- protection against accidental closing (safety position) at 75°
- Inspection position at 102°
- Cover removal at 90°
- Replaceable cushioning insert:
- ensures horizontal and vertical noise reduction,
- long service life, resistant to wear even under extreme load,
- the seal is located in the frame.
-
