BUDATOP-SN DN800, D400

Self-leveling round cover

RAL-GZ692, EN124-2
BUDATOP-SN DN800, D400
BUDATOP-SN DN800, D400

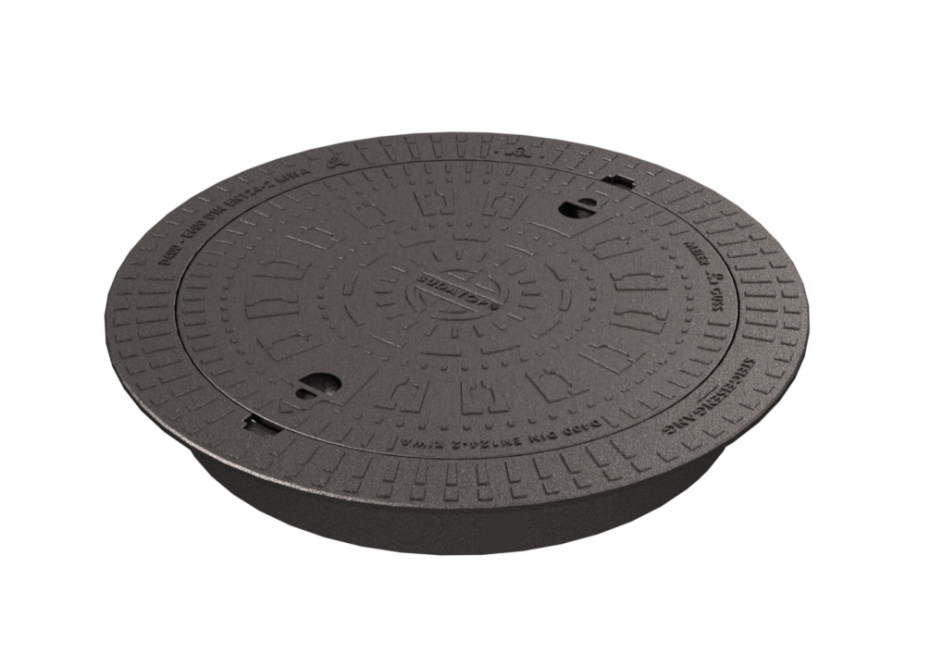

Self-leveling round cast iron frame and cover with a large access opening, DN 800 [mm], corresponds to the requirements of EN 124-2.

  • Advantages

    Four large replaceable stainless steel locking springs to hold the lid in the frame.

    Increased opening holes for opening the cover - easier to open even when it is full of dirt!

    Special socket integrated in the frame for MEISTEP safe entrance tool!

    MEIPREN cushioning inserts - easily exchangeable, prevents the lid from rattling, increases lifetime of cover.

    Adjustable height of the frame due to the MEIFLEX feature.



  • RAL-GZ 692

    • Manufacturer must have obtained ISO 9001 and ISO 14001 certificates;
    • Products are tested not only for static load, but for 12 months in high-intensity traffic;
    • Noise level is measured;
    • Rubber seal longevity test is analysed;
    • «Boarding in the frame» is tested;
    • RAL – quality signs are awarded based on 692 basic quality criteria;
    • RAL publicly available quality criteria, approved by Beuth-Verlag (issuer): «quality is provided by RAL-GZ 692 Kanalguss", or "FV-GET / quality / RAL quality sign / level and test specifications Kanalguss»;
    • Only RAL has the right to use German quality designation „GÜTE“;
    • It is allowed to refer in internatonal tenders / request product compliance with RAL-GZ 692 quality standards and RAL-GZ logo on it;
    • RAL-GZ covers deficiencies in existing standards/regulations by setting additional requirements.



    RAL-GZ692 tests:

    • Resistance to fall:


    Cover is loaded in stable position or grate in symmetric load. RAL-GZ 692 stipulates that is must be loaded and it shall bear 1,5x larger force as it is necessary for the respective class.

    • Turnover characteristics:


    Cover is loaded in stable position or grate in dyanmic asymmetrical load. RAL-GZ 692 stipulates that is must be loaded and it shall bear 1,5x larger force as it is necessary for the respective class.

    • Isolating gasket characteristics:


    Padding increases endurance and stability, as well as reduces noise level. Under load depending on density of the padding, the padding impresses in the cover or grate. If the difference between loading and relief is too large, it may create «trampoline effect». Maximum allowed deformation is 3mm.

    • Product performance in practice:


    Compliance with RAL-GZ 692 standard is reliable assurance for product longevity and quality. Prior to certificate granting, the product is tested for 12 months in high intensity traffic, during which defects are being recordedand differentiated (technological and contructive). If the product shows systemic and continuous defects over 12 months of operation, their causes shall be averted and product shall be tested repeatedly in nature. After successful completion of testing, the product is awarded RAL-GZ 692 certificate.

  • Technical information

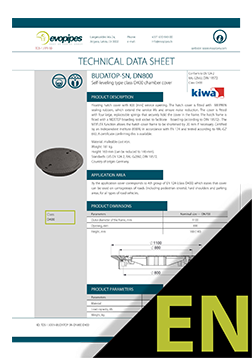

    BUDATOP-SN DN800 mm TDS ENG

    Technical data sheet

    Download
    BUDATOP-SN DN800 mm TDS ENG
    • Load class: D400
    • Certification: KIWA, RAL-GZ692
    • Height: 160 mm (possible shortened to 140 mm)
    • Weight: 181 kg
    • Equipment:
      • frame with cushioning insert MEIPREN®
      • frame with predetermined breaking point MEIFLEX®
      • frame with easy access MEISTEP®

  • Drawings

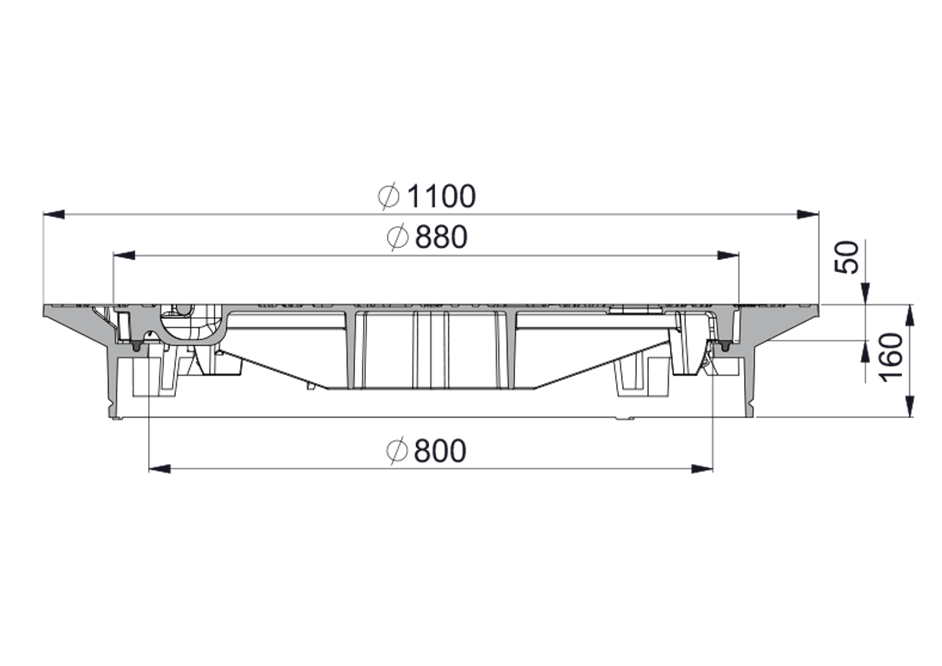

    Standard Drawing BUDATOP-SN DN800, D400 PDF

    Self-leveling type

    Download
    Standard Drawing BUDATOP-SN DN800, D400 PDF

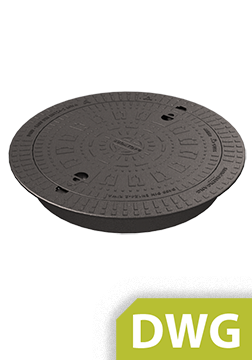

    Standard Drawing BUDATOP-SN DN800, D400 DWG

    DWG file format

    Download
    Standard Drawing BUDATOP-SN DN800, D400 DWG
  • Certificates

    Certificate EN124 KIWA

    Certificate of conformity of KIWA

    Download
    Certificate EN124 KIWA

    Certificate RAL-GZ692

    Certificate of conformity of RAL-GZ692

    Download
    Certificate RAL-GZ692

BUDATOP-SN DN800, D400

Self-leveling round cover

RAL-GZ692, EN124-2
Downloads

Certificate EN124 KIWA

Certificate of conformity of KIWA

Download
Certificate EN124 KIWA

Certificate RAL-GZ692

Certificate of conformity of RAL-GZ692

Download
Certificate RAL-GZ692

Standard Drawing BUDATOP-SN DN800, D400 PDF

Self-leveling type

Download
Standard Drawing BUDATOP-SN DN800, D400 PDF

Standard Drawing BUDATOP-SN DN800, D400 DWG

DWG file format

Download
Standard Drawing BUDATOP-SN DN800, D400 DWG

BUDATOP-SN DN800 mm TDS ENG

Technical data sheet

Download
BUDATOP-SN DN800 mm TDS ENG

Order information

  Product Code
  Cover
BUDATOP-SN Self-leveling round cast iron frame and cover, DN 800 [mm], D400, RAL-GZ692. 820215800SL73000M7
  Entrace tool
Safe entrance tool for BUDATOP chamber cover. 82031900000000006B

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
