BUDAPRESS DN615/785, D400

Stationary type anti-backflow cover with securing mechanism

RAL-GZ692, EN124-2
BUDAPRESS DN615/785, D400
BUDAPRESS DN615/785, D400
BUDAPRESS DN615/785, D400
BUDAPRESS DN615/785, D400

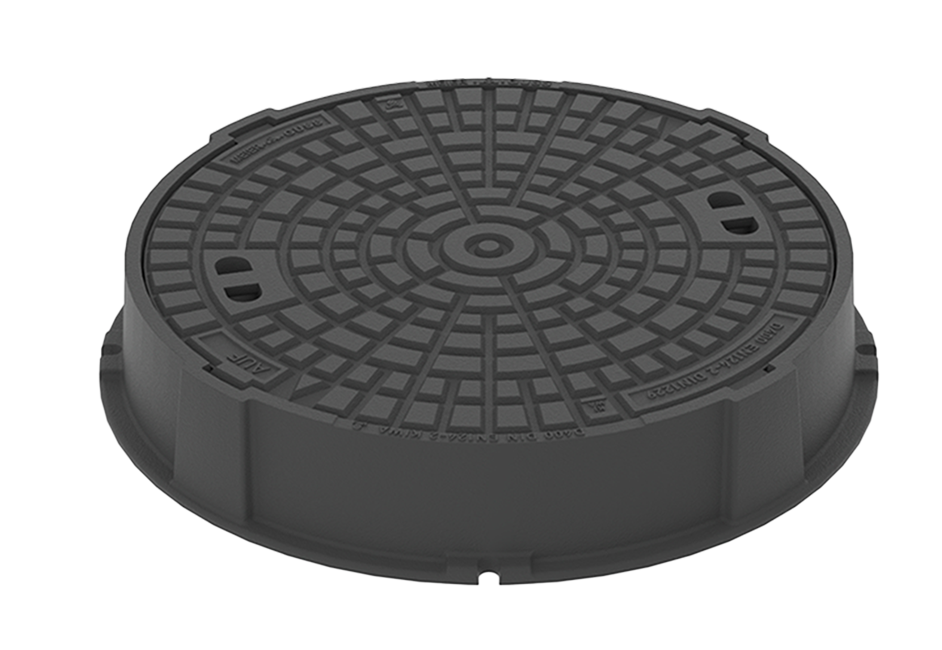

Stationary type round cast iron frame and cover, DN 615/785 mm, with bayonet/cover securing mechanism for pressure relief in the event of backwater, EN 124-2. Cover is equipped with exchangeable MEIPREN cushoning inserts. Available with or without ventilation holes.

  • Advantages

    The BUDAPRESS® manhole cover enables pressure to be relieved by limited and even lifting of the lid in the event of full-surface water pressure due to backwater from the manhole (movement by approx. 50 mm upwards).

    Bayonet connection / cover securing mechanism - The cover is equipped with four lugs on its edge and four securing cams – offset sideways – on its bottom.

    MEIPREN cushioning inserts - easily exchangeable, prevents the lid from rattling, increases lifetime of cover.

    The frame has an integrated option to mount debris bucket or odor filter.
  • RAL-GZ, quality sign 692

    • Manufacturer must have obtained ISO 9001 and ISO 14001 certificates;
    • Products are tested not only for static load, but for 12 months in high-intensity traffic;
    • Noise level is measured;
    • Rubber seal longevity test is analysed;
    • «Boarding in the frame» is tested;
    • RAL – quality signs are awarded based on 692 basic quality criteria;
    • RAL publicly available quality criteria, approved by Beuth-Verlag (issuer): «quality is provided by RAL-GZ 692 Kanalguss", or "FV-GET / quality / RAL quality sign / level and test specifications Kanalguss»;
    • Only RAL has the right to use German quality designation „GÜTE“;
    • It is allowed to refer in internatonal tenders / request product compliance with RAL-GZ 692 quality standards and RAL-GZ logo on it;
    • RAL-GZ covers deficiencies in existing standards/regulations by setting additional requirements.



    RAL-GZ692 tests:

    • Resistance to fall:


    Cover is loaded in stable position or grate in symmetric load. RAL-GZ 692 stipulates that is must be loaded and it shall bear 1,5x larger force as it is necessary for the respective class.

    • Turnover characteristics:


    Cover is loaded in stable position or grate in dyanmic asymmetrical load. RAL-GZ 692 stipulates that is must be loaded and it shall bear 1,5x larger force as it is necessary for the respective class.

    • Isolating gasket characteristics:


    Padding increases endurance and stability, as well as reduces noise level. Under load depending on density of the padding, the padding impresses in the cover or grate. If the difference between loading and relief is too large, it may create «trampoline effect». Maximum allowed deformation is 3mm.

    • Product performance in practice:


    Compliance with RAL-GZ 692 standard is reliable assurance for product longevity and quality. Prior to certificate granting, the product is tested for 12 months in high intensity traffic, during which defects are being recordedand differentiated (technological and contructive). If the product shows systemic and continuous defects over 12 months of operation, their causes shall be averted and product shall be tested repeatedly in nature. After successful completion of testing, the product is awarded RAL-GZ 692 certificate.

  • Technical information

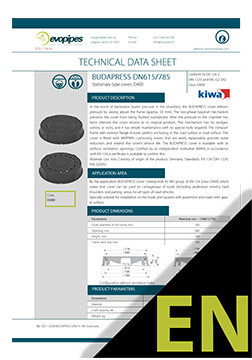

    BUDAPRESS DN615/785, D400 TDS EN

    Technical data sheet

    Download
    BUDAPRESS DN615/785, D400 TDS EN
    • Load class: D400
    • Certification: KIWA, RAL-GZ692
    • Height: 160 mm
    • Weight: 155 kg (option with ventilation 156kg)
    • Equipment:
      • frame and cover with cushioning insert MEIPREN®

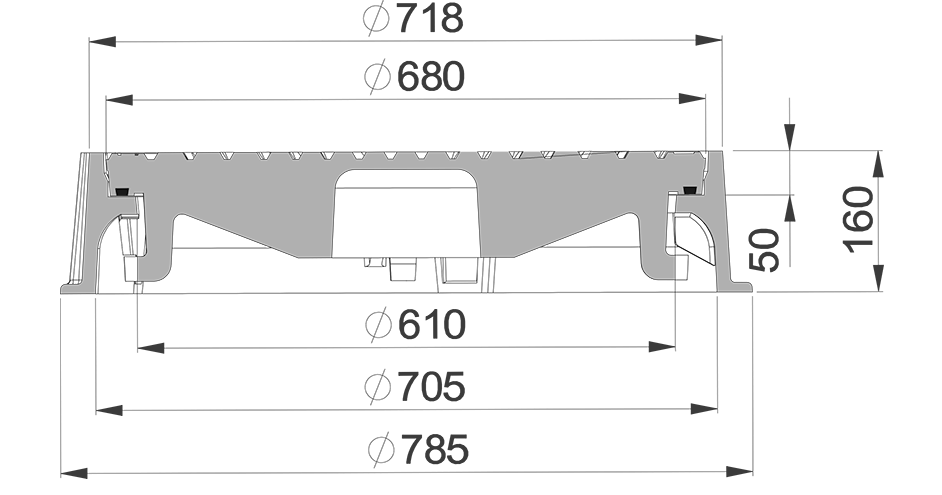

    Configuration without ventilation.

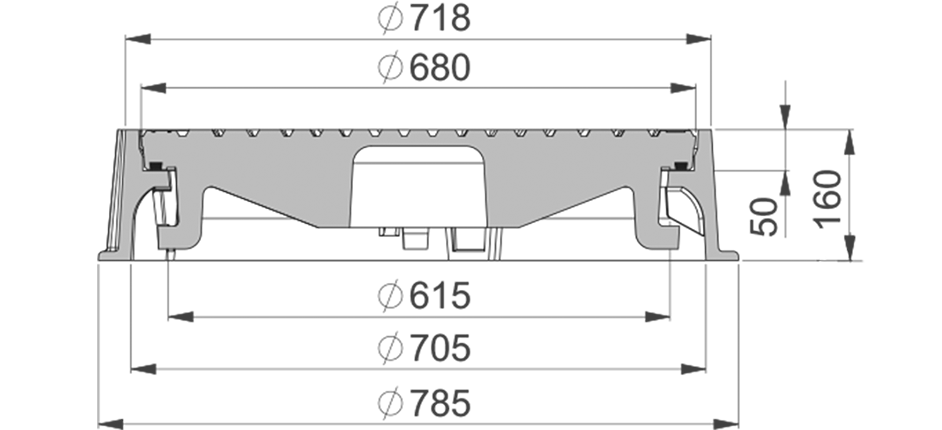

    Configuration with ventilation.

  • Drawings

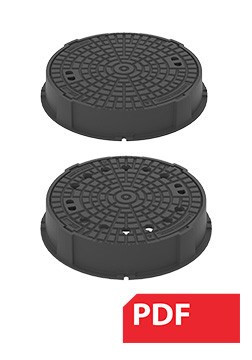

    Standard Drawing BUDAPRESS DN615/785, D400 PDF

    Stationary type

    Download
    Standard Drawing BUDAPRESS DN615/785, D400 PDF

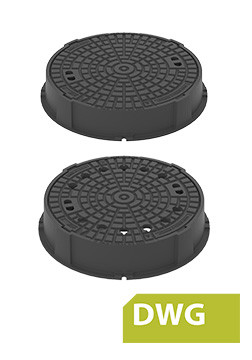

    Standard Drawing BUDAPRESS DN615/785, D400 DWG

    DWG file format

    Download
    Standard Drawing BUDAPRESS DN615/785, D400 DWG
  • Certificates

    Certificate EN124 KIWA

    Certificate of conformity of KIWA

    Download
    Certificate EN124 KIWA

    Certificate RAL-GZ692

    Certificate of conformity of RAL-GZ692

    Download
    Certificate RAL-GZ692

BUDAPRESS DN615/785, D400

Stationary type anti-backflow cover with securing mechanism

RAL-GZ692, EN124-2
Downloads

Meierguss operating and maintenance instructions for chamber covers ENG

Download
Meierguss operating and maintenance instructions for chamber covers ENG

Certificate EN124 KIWA

Certificate of conformity of KIWA

Download
Certificate EN124 KIWA

Certificate RAL-GZ692

Certificate of conformity of RAL-GZ692

Download
Certificate RAL-GZ692

Standard Drawing BUDAPRESS DN615/785, D400 PDF

Stationary type

Download
Standard Drawing BUDAPRESS DN615/785, D400 PDF

Standard Drawing BUDAPRESS DN615/785, D400 DWG

DWG file format

Download
Standard Drawing BUDAPRESS DN615/785, D400 DWG

BUDAPRESS DN615/785, D400 TDS EN

Technical data sheet

Download
BUDAPRESS DN615/785, D400 TDS EN

Order information

  Product Code
  Cover
Stationary type cover BUDAPRESS, DN615/785 [mm], D400, EN124, RAL-GZ692 820215605ST73000BV
Stationary type cover BUDAPRESS with ventilation, DN610/785 [mm], D400, EN124, RAL-GZ692 820215605ST730V0BS

Product pictures are provided for informative purposes only.
Proportions and colours of the original production may differ from the pictures.
