Galvanized flange
For connecting plastic and cast iron pipes
DN 25-630 mm
A galvanized flange forms a transition from a PE pipe to a cast-iron pipe or fitting (together with a Flange with a stub end).
- Pressure class PN16 and PN10
-
Recommended application
Galvanized flanges are used in gas and water installations where it is necessary to connect a plastic pipe system with a metal fitting or a metal pipe system.
-
Technical information
- Material: Steel
- Coating: Galvanized zinc
- Work pressure: 10 to 16 [bar]

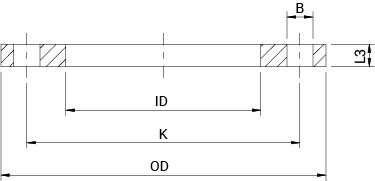

Product dimensions PN10
DN flange [mm] DN pipe [mm] OD ID B K L3 Hole Screw Weight [kg] 20 25 105 34 14 75 12 4 M12 0.78 25 32 115 42 14 85 14 4 M12 0.90 32 40 140 52 18 100 14 4 M16 1.30 40 50 150 63 18 110 16 4 M16 1.50 50 63 165 78 18 125 16 4 M16 1.90 65 75 185 92 18 145 16 4 M16 2.30 80 90 200 108 18 160 18 8 M16 2.80 100 110 220 128 18 180 18 8 M16 3.20 125 140 250 158 18 210 18 8 M16 3.90 150 160 285 178 22 240 20 8 M20 5.20 150 180 285 186 22 240 20 8 M20 5.00 200 200 340 235 22 295 20 8 M20 6.70 200 225 340 238 22 295 20 8 M20 6.70 250 250 395 289 22 350 24 12 M20 10.50 250 280 395 295 22 350 24 12 M20 10.20 300 315 445 339 22 400 26 12 M20 13.60 350 355 505 377 22 460 30 16 M20 21.00 400 400 565 431 26 515 32 16 M24 24.00 450 450 615 470 26 565 34 20 M24 26.00 500 450 670 517 26 620 38 20 M24 39.00 500 500 670 533 26 620 38 20 M24 36.00 600 560 780 618 30 725 42 20 M27 53.00 600 630 780 645 30 725 42 20 M27 47.00 PN16 DN flange [mm] DN pipe [mm] OD ID B K L3 Hole Screw Weight [kg] 20 25 105 34 14 75 12 4 M12 0.78 25 32 115 42 14 85 14 4 M12 0.90 32 40 140 52 18 100 14 4 M16 1.30 40 50 150 63 18 110 16 4 M16 1.50 50 63 165 78 18 125 16 4 M16 1.90 65 75 185 92 18 145 16 4 M16 2.30 80 90 200 108 18 160 18 8 M16 2.80 100 110 220 128 18 180 18 8 M16 3.20 125 140 250 158 18 210 18 8 M16 3.90 150 160 285 178 22 240 20 8 M20 5.20 150 180 285 186 22 240 20 8 M20 5.00 200 200 340 235 22 295 23 12 M20 7.30 200 225 340 238 22 295 23 12 M20 7.30 250 250 405 289 26 355 29 12 M24 12.50 250 280 405 295 26 355 29 12 M24 12.00 300 315 460 339 26 410 34 12 M24 17.00 350 355 520 376 26 470 36 16 M24 26.00 400 400 580 431 30 525 41 16 M27 31.00 450 450 670 517 30 585 42 20 M30 39.00 500 450 670 517 33 650 42 20 M30 57.00 500 500 715 533 33 650 42 20 M30 52.00 600 560 840 618 36 770 48 20 M30 91.00 600 630 840 645 36 770 48 20 M30 77.00
