PE/Brass transition insert
Butt-fusion fitting PE100-RC
DN/OD 20-125 mm
Brass/PE transition inserts weldable with SDR11 fittings. Brass/PE transitions are available with male and female threads, in various types and sizes.
- Pressure class PN16 (water) and PN10 (gas)
-
Recommended application
PE/brass transition fittings are used in installations distributing gas and water.
-
Installation
The butt fusion involves heating the ends of two pipe/fitting components (from PE100-RC material) which are to be joined until a molten state is attained on each contact surface. The two surfaces are then brought together under controlled pressure for a specific cooling time and a homogeneous fusion joint is formed.
The resultant joint is fully resistant to end loads and has comparable performance under pressure to the pipe itself.
-
Technical information
- Material - Polyethylene PE100-RC
- Work pressure water systems - 16 [bar]
- Work pressure gas systems - 10 [bar]
- Treads comply with EN10226-1

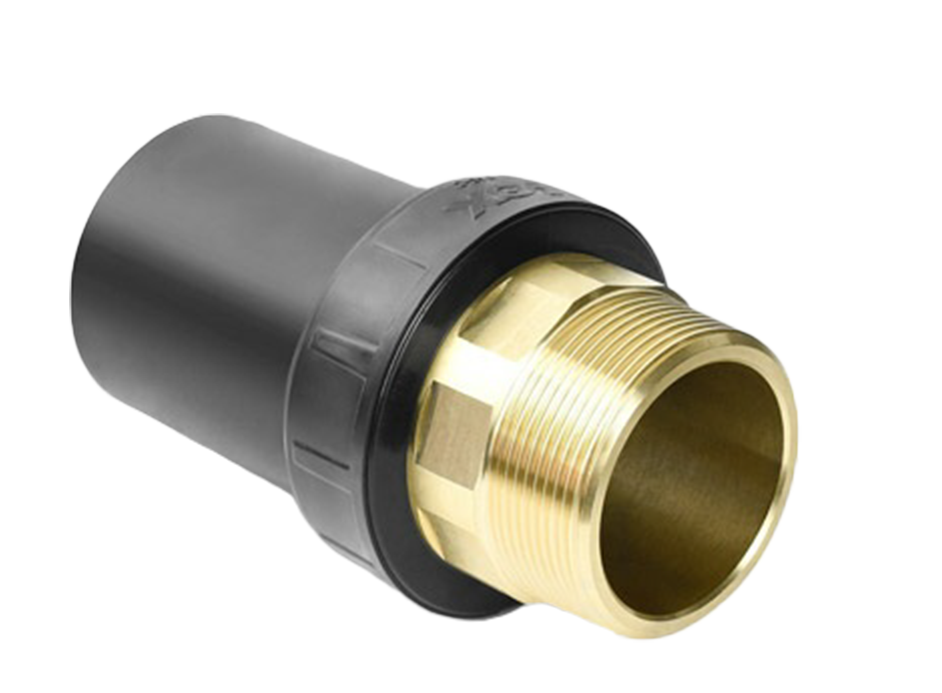

Product dimensions External thread (male)

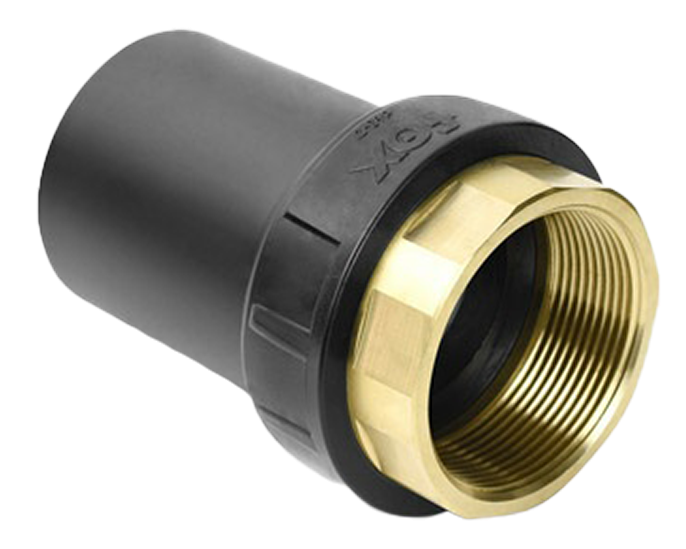

D1 x D2 [mm] C [mm] A [mm] Weight [kg] 20 x ½" 22 91 0.08 25 x ¾" 28 93 0.08 32 x 1'' 34 102 0.17 40 x 1'' 34 107 0.19 40 x 1¼'' 44 113 0.28 50 x 1½'' 49 123 0.36 63 x 2'' 61 139 0.67 75 x 2½" 76 158 0.96 90 x 3'' 88 175 1.40 110 x 4'' 114 196 2.35 125 x 4'' 114 196 2.44 Internal thread (female)
D1 x D2 [mm] C [mm] A [mm] Weight [kg] 20 x ½" 26 77 0.07 25 x ¾" 32 78 0.09 32 x 1'' 40 83 0.14 40 x 1'' 40 88 0.15 40 x 1¼'' 48 96 0.20 50 x 1¼'' 55 103 0.28 63 x 2'' 67 115 0.41 75 x 2½" 83 130 0.65 90 x 3'' 96 147 1.02 110 x 4'' 122 160 1.50 125 x 4'' 122 160 1.59 -
