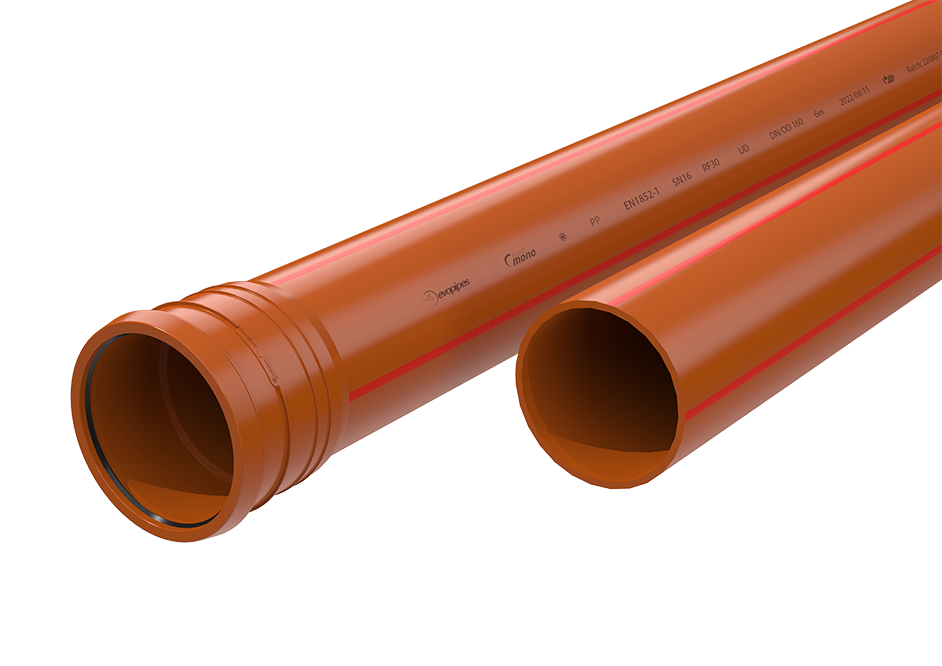

MONODRAIN UP
Unperforated pipe (UP), EN 1852-1, DBS 918 064, DIN 4262-1
SN8 or SN16 (kN/m²), DN/OD 110, 160, 200, 250 mm
MONODRAIN are hard (non-pliable) drainage pipes from polypropylene (PP) material with SEAL LOCK sockets and integrated sealing ring. According to product standard DIN 4262-1, they feature double-wall construction (R3 type) with smooth internal and external surfaces.
Manufactured according to product standards EN 1852-1, DBS 918 064 for installation in railway infrastructure areas.
- Nominal ring stiffness class SN8 or SN16 [kN/m²]
- Available sizes: DN/OD 110, 160, 200 [mm]
- Standard pipe bar length¹: 6 [m]
- UP type- unperforated liquid transportation pipe
¹ Other lengths are available on request
-
Advantages
SN16 class - perfectly suited for places with heavy tarffic loads, for example - railway construction
The pipes can be installed in low temperatures until -10 °C
Pipes are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The pipes are environment-friendly and recyclable after several decades in service
Long operational life - overs 100 years -
Recommended application
For drainage on plots where the depth of groundwater deposition is less than the drainage norm, i.e. land plots for which, due to high groundwater levels, the topsoil is unable to drain excess moisture in the spring period, as well as due to high groundwater levels, underground engineering structures, roads, etc. are damaged.
Drainage system MONODRAIN R3 type pipes are suited for installations in:
Railway construction (DBS 918 064)
Road construction - with and without traffic load
Airport teritory infrastructure
Harbors and docks infrastructure objects
-
Technical information
MONODRAIN pipe is equipped with a SEAL LOCK socket and integrated oil-resistant sealing ring². The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 bar (for the coupling area).
- Pipe material: polypropylene (PP)
- Produced according to EN 1852-1, DBS 918 064, DIN 4262-1
- Nominal ring stiffness class SN8 or SN16 [kN/m²]
- Available sizes: DN/OD 110, 160, 200, 250 [mm]
- Standard pipe bar length¹: 6 [m]
- Sealing ring material: EPDM
¹ Other lengths are available on request
² The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
