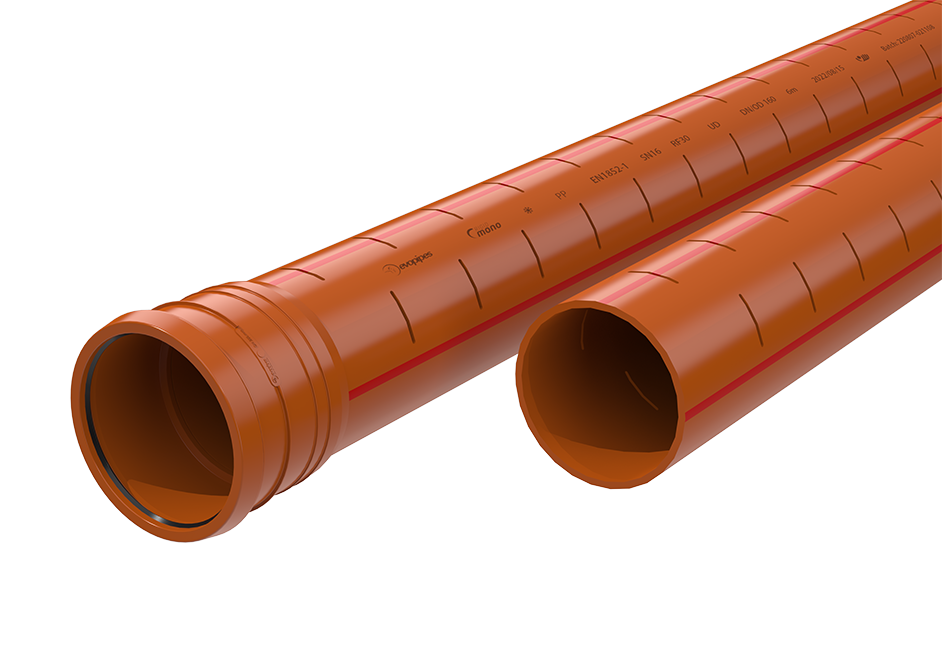

MONODRAIN perforated 120°
Multi purpose (MP), EN 1852-1, DBS 918 064, DIN 4262-1
SN8 or SN16 (kN/m²), DN/OD 110, 160, 200, 250 mm
MONODRAIN 120° are hard (non-pliable) drainage pipes from polypropylene (PP) material with SEAL LOCK socket and integrated sealing ring. According to product standard DIN 4262-1 they feature double-wall construction (R3 type) with smooth internal and external surfaces.
Manufactured according to product standards EN 1852-1, DBS 918 064 for installation in railway infrastructure areas.
- Nominal ring stiffness class SN8 or SN16 [kN/m²]
- Available sizes: DN/OD 110, 160, 200, 250 [mm]
- Water permeability ≥ 100 [cm2/m]
- Perforation opening slot width: 5 [mm]
- Standard pipe bar length¹: 6 [m]
- (MP) type perforation- 120° multipurpose pipe
MP type ≤120° perforated multipurpose pipe whose perforation openings on the pipe surface are located symmetrically to the vertical axis of the pipe at max ≤120° area, but the lower part of the pipe ''flow channel'' is unperforated. It's used for liquid collection and transportation.
¹ Other lengths are available on request
-
Advantages
SN16 class - perfectly suited for places with heavy traffic loads, for example - railway construction
The pipes can be installed in low temperatures until -10 °C
Pipes are resistant to exposure to aggressive substances present in sewage and subsoil from pH2 (acidic medium) until pH12 (alkaline medium)
The pipes are environment-friendly and recyclable after several decades of service
Long operational life - over 100 years -
Recommended application
For drainage on plots where the depth of groundwater deposition is less than the drainage norm, i.e. land plots for which, due to high groundwater levels, the topsoil is unable to drain excess moisture in the spring period, as well as due to high groundwater levels, underground engineering structures, roads, etc. are damaged.Drainage system MONODRAIN R3 type pipes are suited for installations in:
Railway construction (DBS 918 064)
Road construction - with and without traffic load
Airport teritory infrastructure
Harbors and docks infrastructure objects
-
Technical information
MONODRAIN pipe is equipped with a SEAL LOCK socket and integrated oil-resistant sealing ring². The supplied sealing ring grants a hermetic seal with a pressure rating of ≥0,5 bar (for the coupling area).
- Material: polypropylene (PP)
- Produced according to EN 1852-1, DBS 918 064, DIN 4262-1
- Each pipe is equipped with double sleeve
- Nominal ring stiffness class SN8 or SN16 [kN/m²]
- Available sizes: DN/OD 110, 160, 200, 250 [mm]
- Water permeability ≥ 100 [cm2/m]
- Standard pipe bar length¹: 6 [m]
- Perforation opening slot width: 5 [mm]
- Both ends of perforation openings are rounded:
¹ Other lengths are available on request
² The sealing ring is resistant to oil according to the requirements of EN 681-2 p.5.10. Compliance is determined by the "Volume change in oil" test according to ISO 1817.
